Rigol DSA832 | 9 kHz to 3.2 GHz Spectrum analyzer
| Model-Overview | Max. Bandwidth | EMI/QuasiPeak | Adv. Meas. Kit | Preamplifier | Tracking Gen. |
|---|---|---|---|---|---|
| DSA815 | 1.5 GHz | optional | optional | Yes | |
| DSA815-TG | 1.5 GHz | optional | optional | Yes | Yes |
| DSA832E | 3.2 GHz | optional | optional | Yes | |
| DSA832E-TG | 3.2 GHz | optional | optional | Yes | Yes |
| DSA832 | 3.2 GHz | optional | optional | Yes | |
| DSA832-TG | 3.2 GHz | optional | optional | Yes | Yes |
| DSA875 | 7.5 GHz | optional | optional | Yes | |
| DSA875-TG | 7.5 GHz | optional | optional | Yes | Yes |

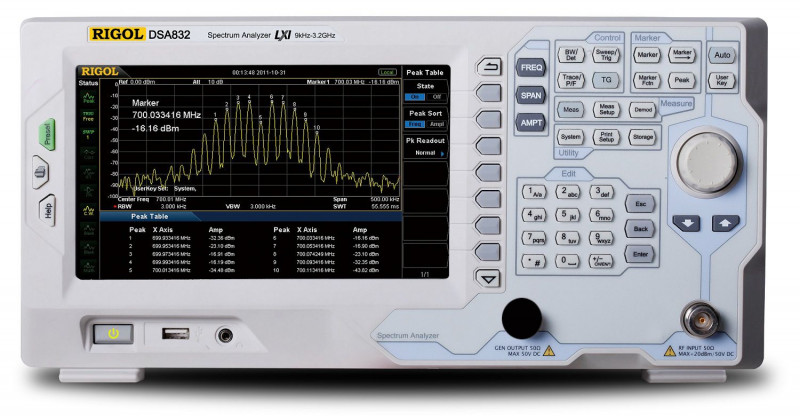

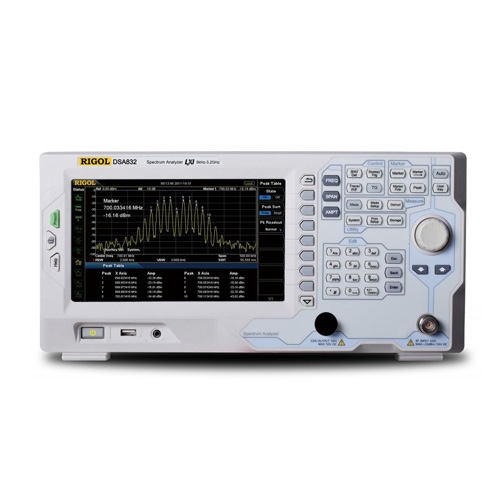

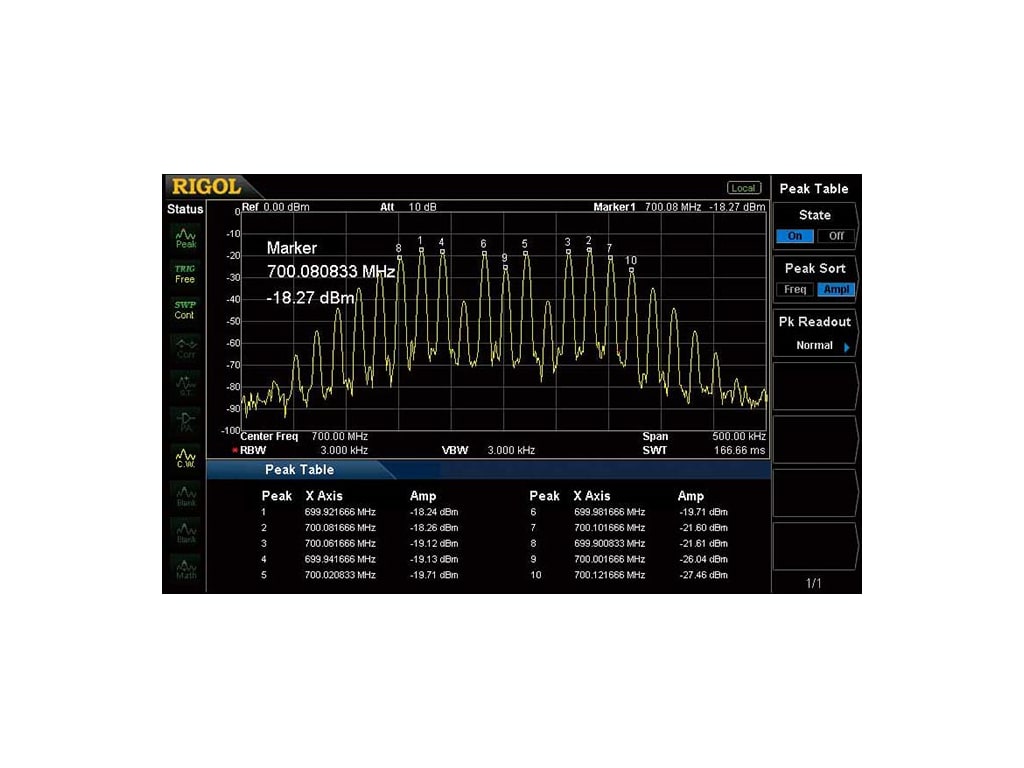

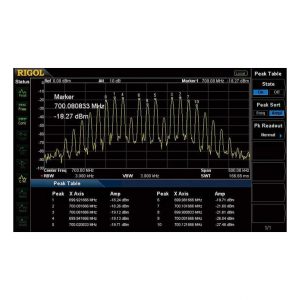

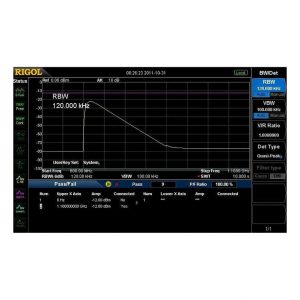

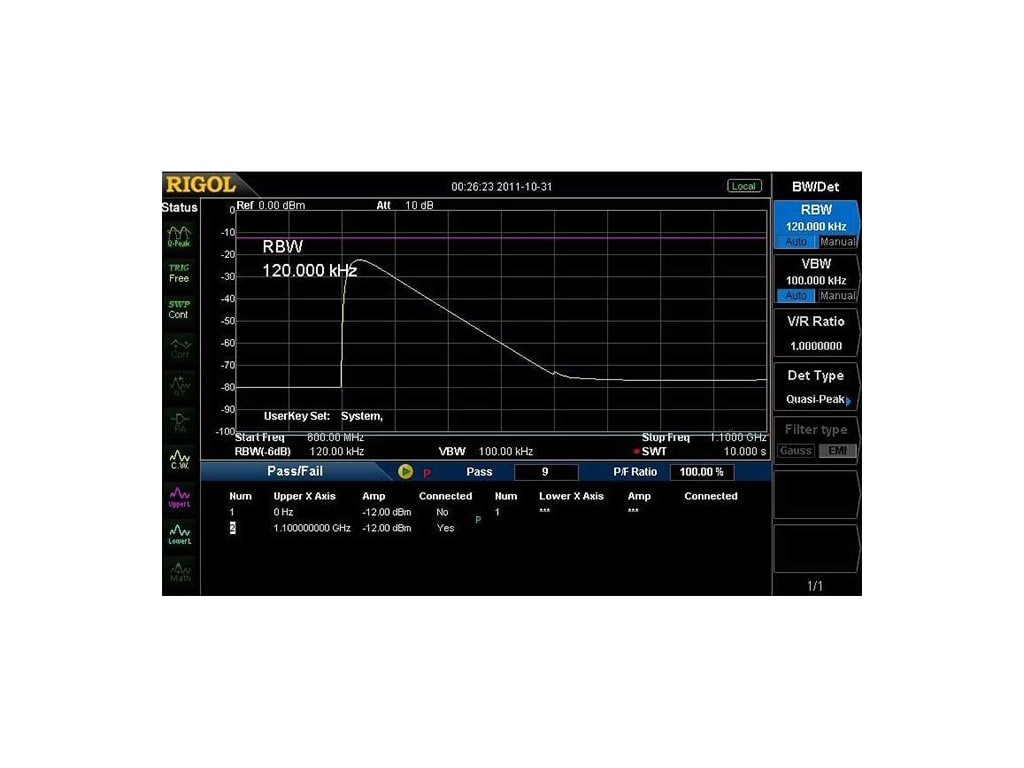

The Rigol DSA832 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications. The very large display (20.3 cm / 8″) of the Rigol DSA832 Spectrum Analyzer provides a resolution of 800×480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer. The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
| Spektrum Analyzer | Rigol DSA832 |
|---|---|
| Display | 20,3 cm (8″) TFT-Color-LCD |
| Resolution | 800 × 480 Pixel |
| Interfaces |
|
| Dimensions | 362 mm × 179 mm × 128 mm (15.71″ × 8.78″ × 6.26″) |
| Weight | 4.55 kg (10.03 lbs) |
The complete list of technical specifications can be found in chapter 5 “Specifications” of the manual. A shorter overview is available in the datasheet.
| Function | Rigol DSA832 | |
|---|---|---|
| Channels | 1 | |
| Frequency Range | 9 kHz to 3.2 GHz | |
| Frequency Resolution | 1 Hz | |
| Internal Frequency Reference | 10 MHz | |
| Span | 0 Hz (zero Span) 100 Hz to 3.2 GHz |
|

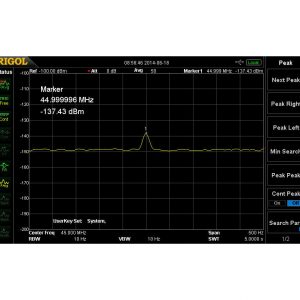

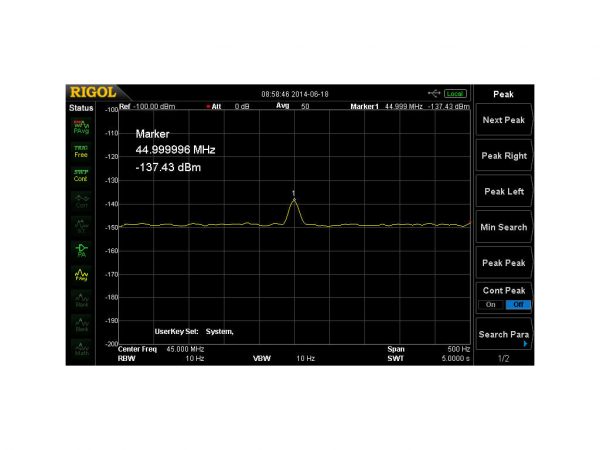

| DANL
(Displayed Average Noise level) |
9 kHz to 100 kHz 100 KHz to 5 MHz 5 MHz to 3.2 GHz |
<-120 dBm (typ.) <-135 dBm, <-138 dBm (typ.) <-140 dBm, <-144 dBm (typ.) |
| DANL (with Preamplifier)
(Displayed Average Noise level) |
9 kHz to 100 kHz 100 KHz to 5 MHz 5 MHz to 3.2 GHz |
<-152 dBm (typ.) <-152 dBm, <-155 dBm (typ.) <-157 dBm, <-161 dBm (typ.) |
| Amplitude Range | DANL to 20dBm | |
| Max. Input Voltage | 50 V | |
| Sweeptime Range | Span >= 100 Hz zero span |
10 ms to 3200 s 20 µs to 3200 s |

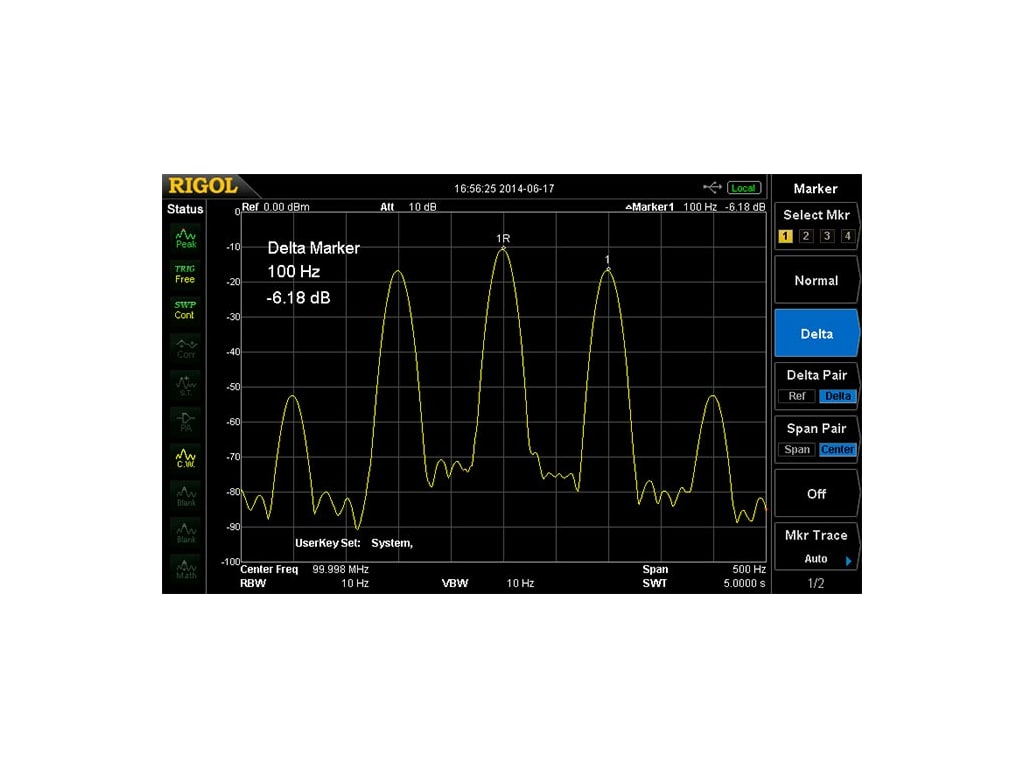

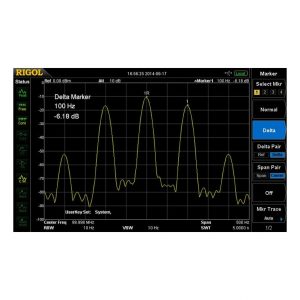

| Resolution Bandwidth (RBW) | 10 Hz to 1 MHz (in 1-3-10 sequence) | |
| Video Bandwidth (VBW) | 1 Hz to 3 MHz (in 1-3-10 sequence) | |
| Input Impedance | 50 Ohm nominal |
| Weight | 4,25 kg |
|---|---|
| Dimensions | 128 × 361 × 178 cm |
| Select Model | DSA815, DSA815-TG, DSA832E, DSA832E-TG, DSA832, DSA832-TG |
