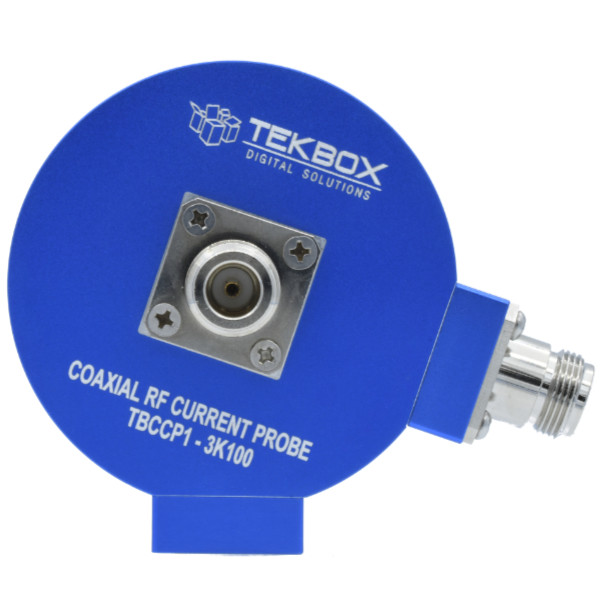

The TBCCP1-3K100 is a coaxial RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The probe has a 3 dB bandwidth from 3 kHz to 100 MHz and a very flat response from 9 kHz to 30 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-3K100 is primarily designed as transducer for active loop antennas or for measurement of RF currents in coaxial cables.

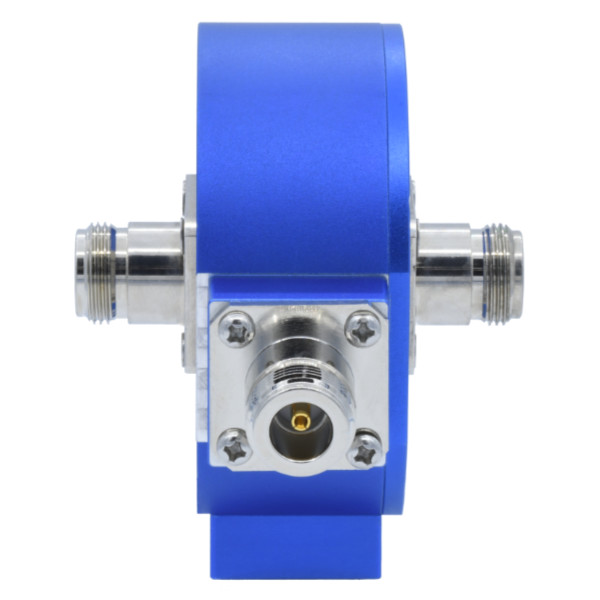

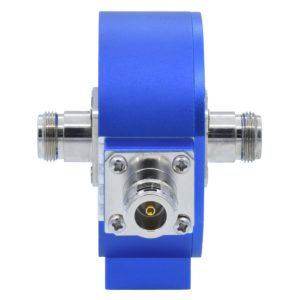

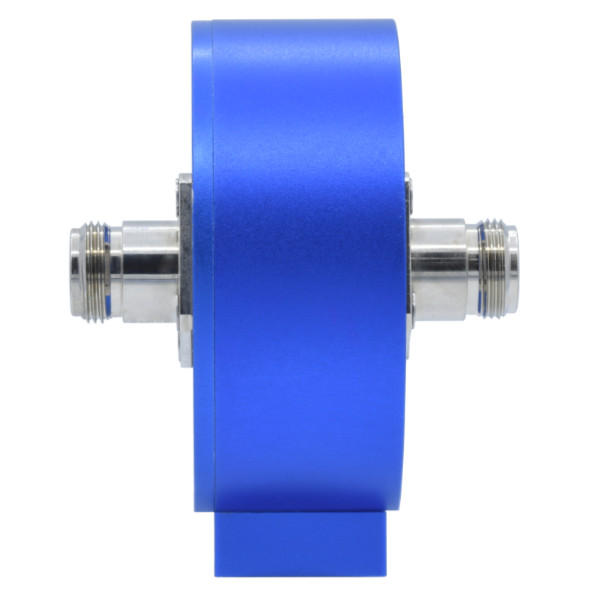

The probe is equipped with N-connectors. An attachment with a ¼” thread permits connectivity to standard tripods.
