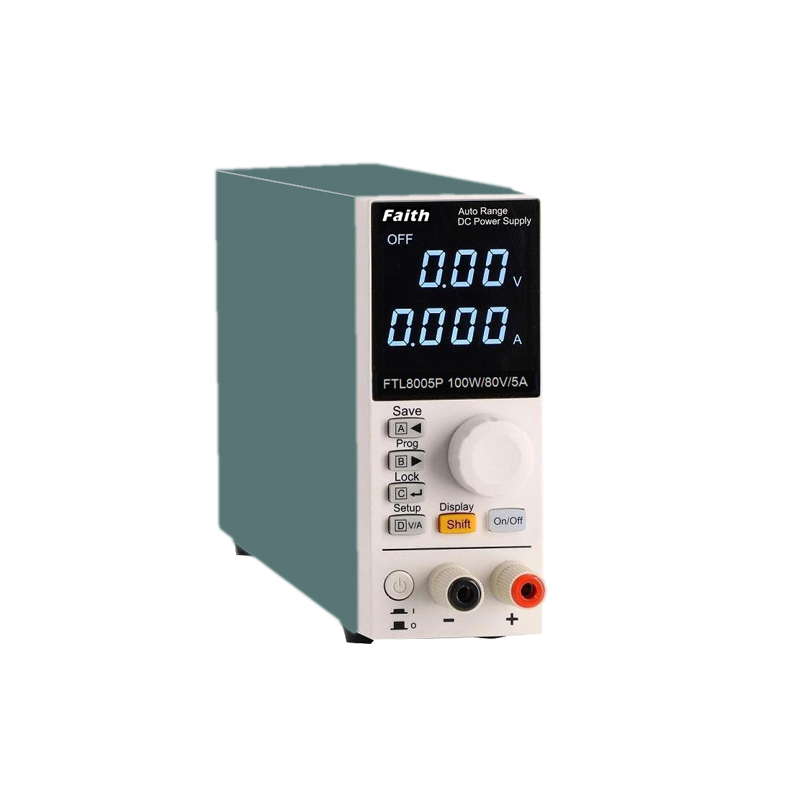

FaithTech FTLP Series Wide ange Portable Programmable DC Power Supply
FTLP series is a kind of programmable Portable bench DC power supply, with the widest output range, which allows engineers to test more program requirements with just one device. To be exact, the FTLP series provides full power all the way down to 25% of the rated output voltage. The FTLP series is equipped with RS232 and RS485 as standard interfaces that are essential for system integration, you can also choose USB or LAN interface as your add-on interface. The series supports SCPI and MODBUS-RTU protocol, which is convenient for all kinds of test platform. The FTLP series DC power supply can be widely used in battery chargers, high-voltage ultra-high-speed diodes, electrolytic capacitors, electromechanical control fields, and ATE test systems, etc.
FTLP-series-wide-range-programmable-DC-power-supply.pdf
FaithTech-Catalogue-2025-version.pdf
- Full digital control;
- Minimal form factor for easy portability;
- Full scale high resolution;
- Low ripple low noise;
- Ultra high brightness VA screen display;
- Fixed voltage, fixed current and fixed power output;

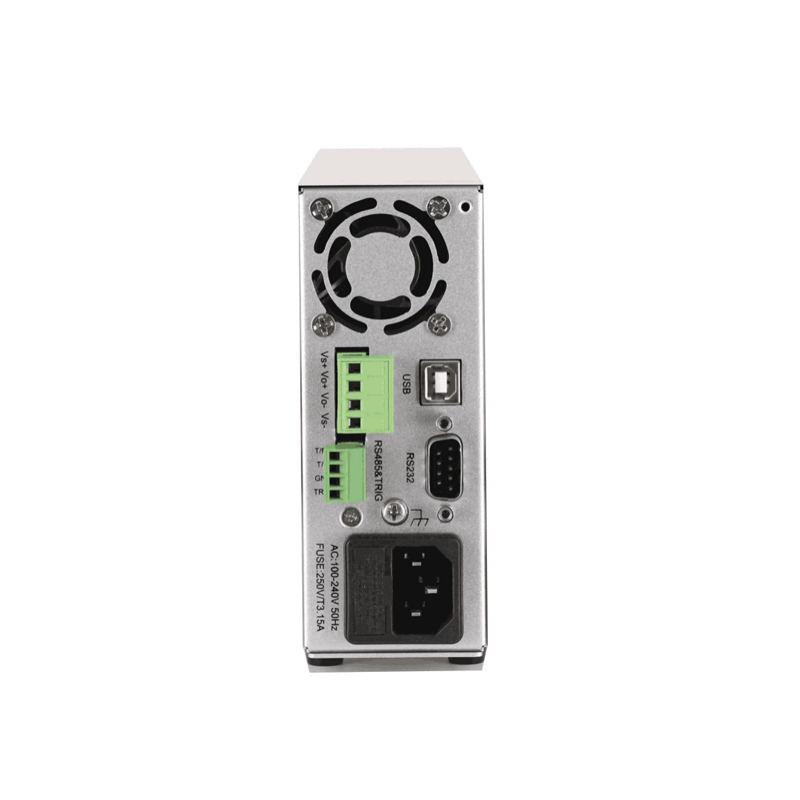

- Standard RS232 and RS485, USB or LAN can choose one;
- Wide AC input range of 100-240VAC;
- Support SCPI instruction set, MODBUS-RTU protocol;
- High reliability: over voltage/over current/over heat protection function;
- The output has switch control;
- Remote compensation function, external trigger function;
- High quality and cost-effective;
- Multiple sets of output voltage and current can be preset: 4×100 sets;
- Optional LAN or USB interface;
- An 8-way chassis is optional to form an 8-way power supply.
| Model | Power | Voltage | Electric current | Resolution |
| FTL8005P | 100W | 81V | 5.1 A | 10mV/1mA |
| FTL4005P | 100W | 40.5 | 4.1 A | 10mV/1mA |
| FTL4016P | 180W | 40.5 V | 16.4 A | 10mV/10mA |
| FTL8008P | 180W | 81V | 8.2 A | 10mV/1mA |
| FTL16004P | 180W | 162V | 4.1 A | 100mV/1mA |
The FTLP series is a wide range of portable programmable DC power supplies, with the widest voltage and current utilization rate of similar products, which greatly improves the application range.
Taking FTL8005P as an example, 100W power, the output value is adjustable within 80V/5A, and the change rate of voltage and current is automatically controlled, and the power ratio is as much as four times. One machine can replace the previous 80V×1.2A/60V×1.6A/32V×3.1A/20V×5A four models, reducing your repeated investment.
Provide a variety of communication interfaces, with a wealth of SCPI and MODBUS instructions, convenient to set up a variety of test platforms. Widely used in battery chargers, high voltage ultra-high speed diodes, electrolytic capacitors, electromechanical control fields and ATE test systems.
Advantages :
FTL8005P 100W DC Power Supply V/I curve
the FTLP series provides full power all the way down to 25% of the rated output voltage. Take FTL8005P as an example, with 100W outpt power, the output voltage and current value can be adjusted within 80V/5A, one single power supply can replace the previous four models of 80V×1.2A/60V×1.6A/32V×3.1A/20V×5A, reducing your repeated investment.
Dimension :
Standalone dimension (Unit: mm)
8 channel chassis dimension (Unit: mm)
