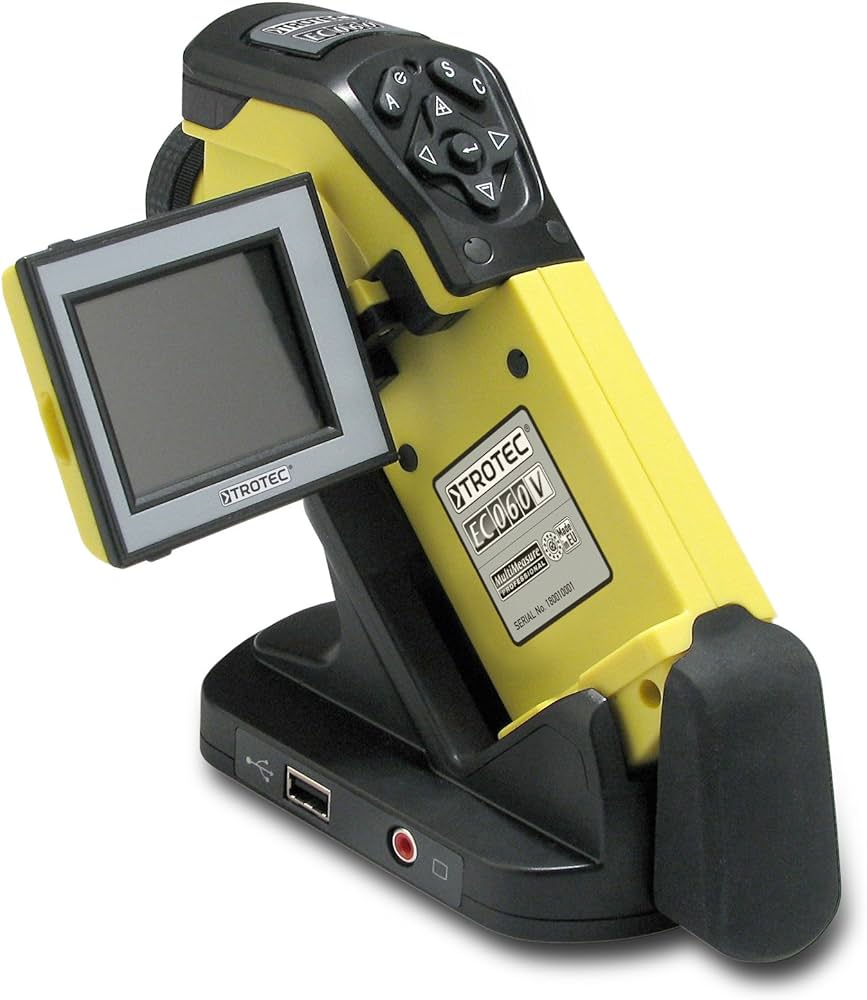

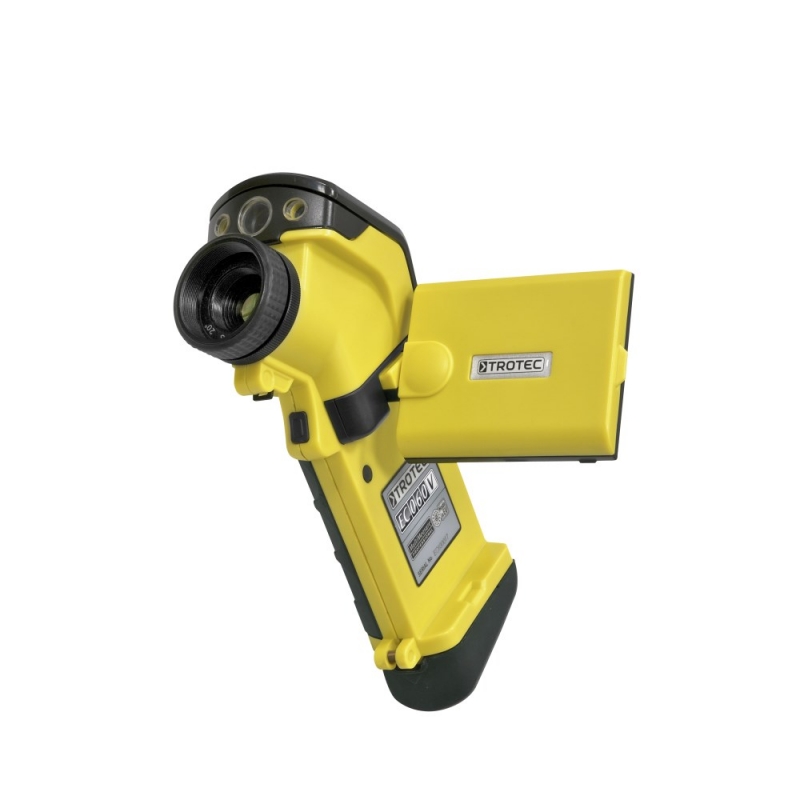

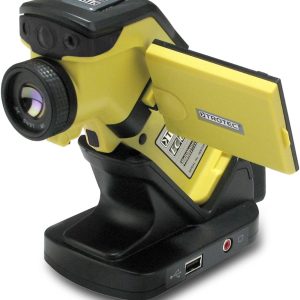

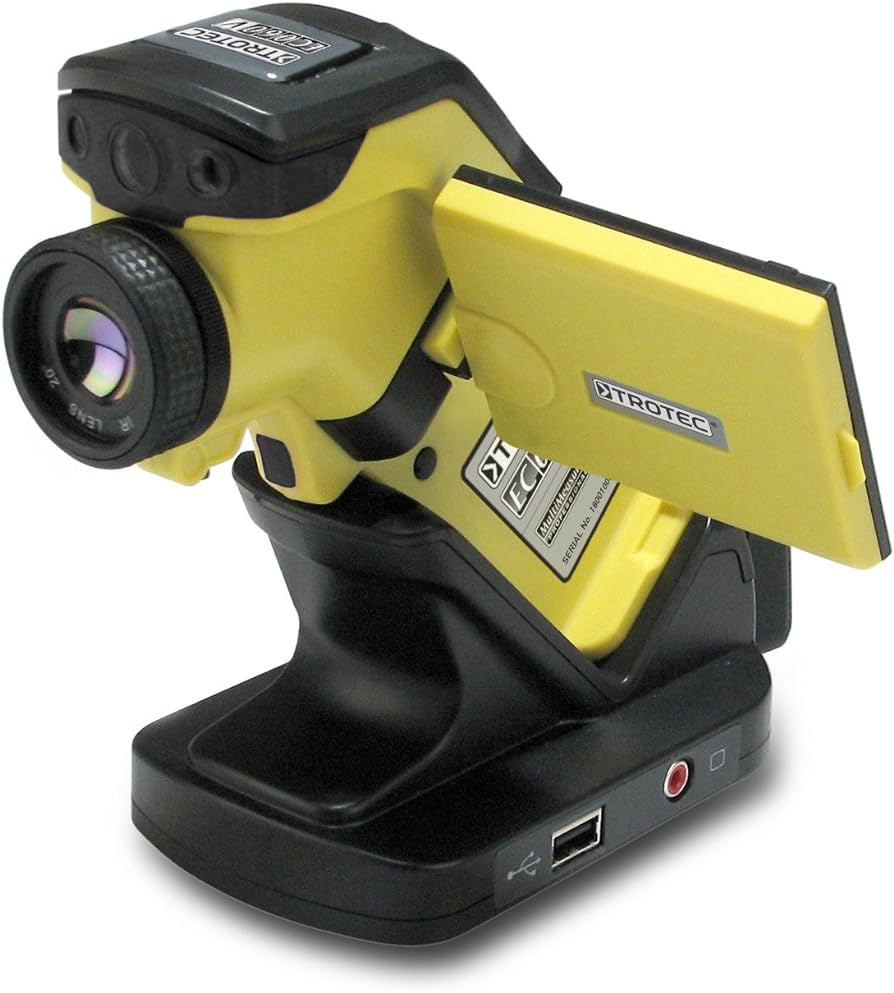

Trotec EC060 V Thermal Imaging Camera
- Real-time measurement
- Thermal sensitvity of 0.08°C (80mK)
- Automatic temperature tracking (hot/cold spots)
- Integrated photo lamp for shooting dark areas
- Integrated digital camera for real images
- Laser Pointer
- DuoVision for picture-in-picture display
- Isotherm function
- Adjustable energy saving mode
- Large and pivotable LCD display
The Trotec EC060 V infared camera offers accurate real-time measurement readings and display through its DuoVision function, meaning you can save photos live in combination with the corresponding thermal images. This will significantly improve the accuracy of problem areas you find and help with your analysis.
It also contains the added benefits of an in-built digital camera and integrated photo lamp, so you can use the thermal imager for the ideal illumination of dark shooting areas.
- Operating Time : 3.0 h
- Thermal Resolution : 160 x 120 pixels
- Protection Class : IP 54 IEC 529
- Weight : 500g
- Image Frequency : 50/60 Hz
- Digital Photo Camera : 680 x 480 pixels, integrated photo lamp
- Geometric Resolution : 2.2 mrad
- Dimensions : 175 x 55 x 160 mm
- Operating Temperature : -15 °C to +50 °C
- Temperature Range : -20°C to +250°C
- Battery Type : Standard, Li-ion; rechargeable, replaceable
- Focus : Manual
- Thermal Sensitvity : 0.08 °C at 30 °C
- Field Of Vision : 20° x 15°
- Spectral Range : 8 to 14 µm
- Resolution : 160 x 120 pixels
- Accuracy : ±2°C, ± 2% of the measured value
