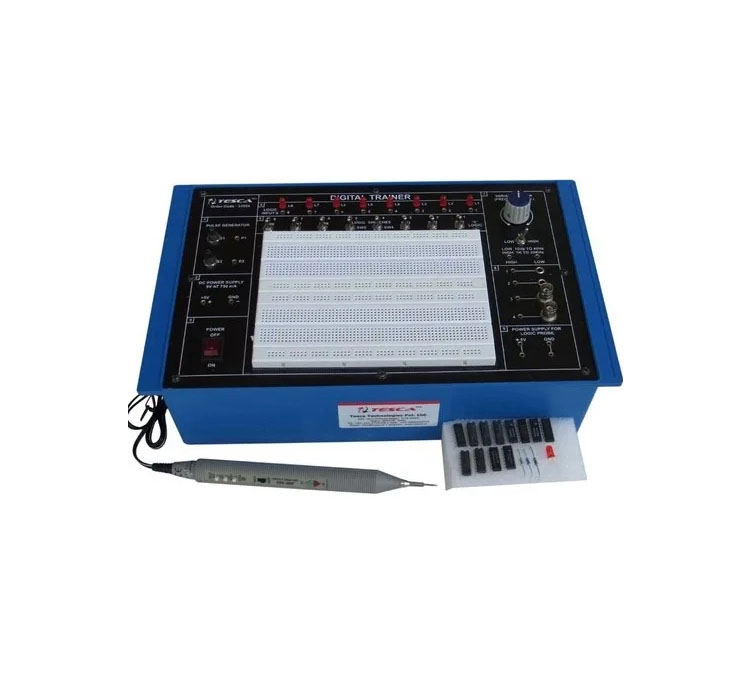

TESCA Digital Trainer

Specifications:
01. Breadboard : Solderless Bread board with 1680 inter connected Tie Points
02. Pulse Switches : 2 No’s. Bounce free push buttons
03. Logic Switches : 8 logic level Switches in Dip type .
04. Power Supply : Fixed: 5V at 750 mA
05. Power Sockets : Logic Probe Power Supply Sockets
06. Logic Input : 8 LED buffered logic level indicators
07. Variable Clock : Fine adjustment of clock frequency.
Clock range selection L : 10 – 40 Hz, H : 1K – 20K Hz.
08. Jacks : 2mm to BNC Socket 2 No. 2mm to 4mm Socket 2 No.
09. Components Provided : ICs – 4001/1, 7400/3, 7402/1, 7404/1, 7408/1, 7432/1, 7476/2, 7486/1, 74126/1, Resistors 1/4W ±5% 230E/1, 10K/1, 39K/1, LED 5mm/1
10. Accessories : Mains cord, 2mm Red & Black patch cords 5 each and 2mm to 1mm Red & Black 5 each
11. Instruction manual : Strongly supported by detailed operating instructions.
12. Logic Probe : 1 Pc Provided
* Wiring of all types of experiments become simple and less time consuming.
* The unit is operative on 230V ±10% at 50Hz AC Mains.
