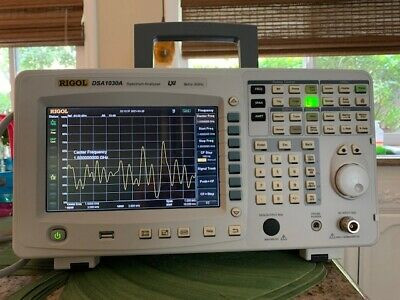

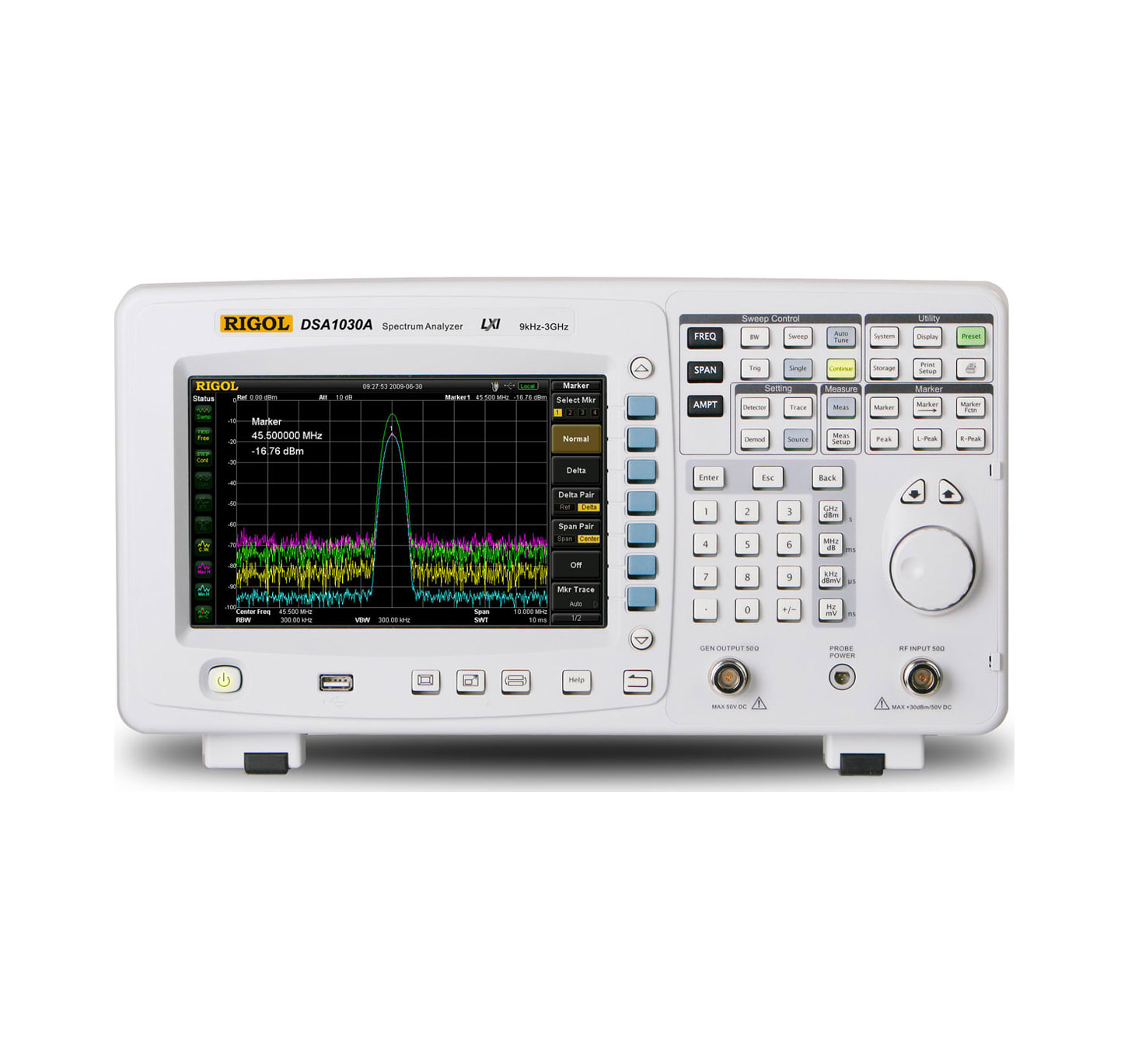

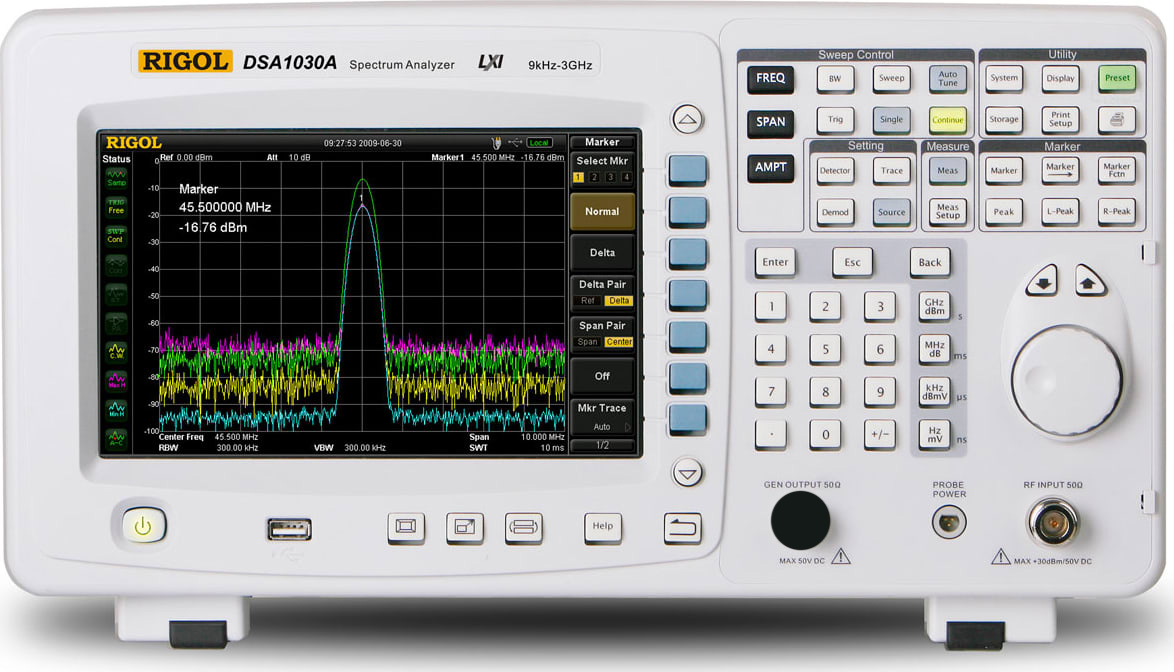

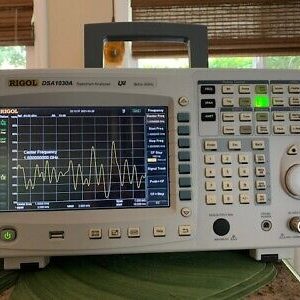

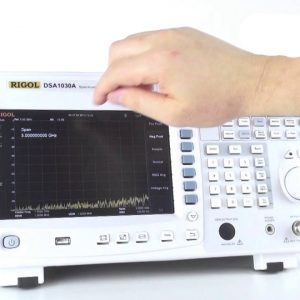

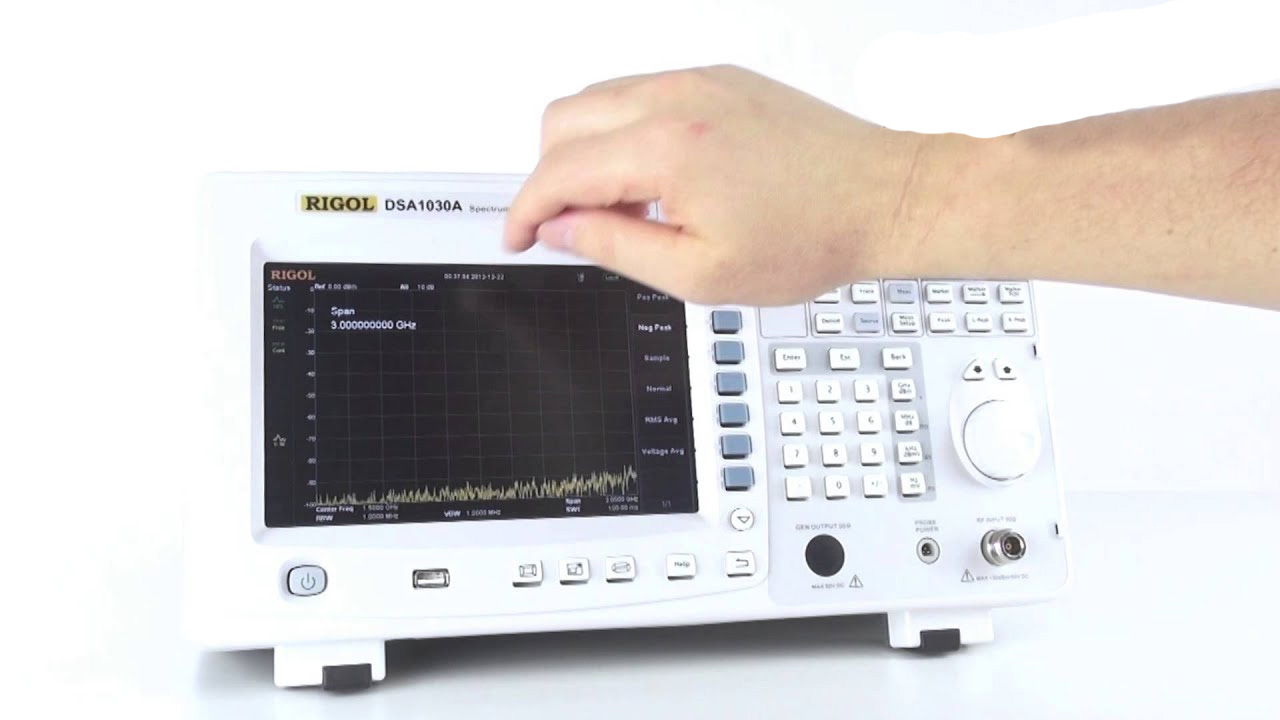

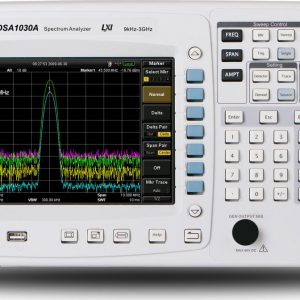

Rigol DSA1030A | 9 kHz to 3 GHz Spectrum Analyzer

Spectrumanalyzer from 9 kHz to 3 GHz.

Rigol DSA1030-PA-TG3 Datasheet

Rigol DSA1000 Programming Guide

Rigol DSA1000 Quick Guide

Discontinued – Replaced by: DSA832

Category: Spectrum Analyzers Tags: 9 kHz to 3 GHz Spectrum Analyzer, DSA1030A, Performance Spectrum Analyzers, Rigol, Rigol DSA1000A, Rigol DSA1030A, Spectrum Analyzers

Model overview	Adv. Measure Kit	Preamplifier	Tracking Gen.

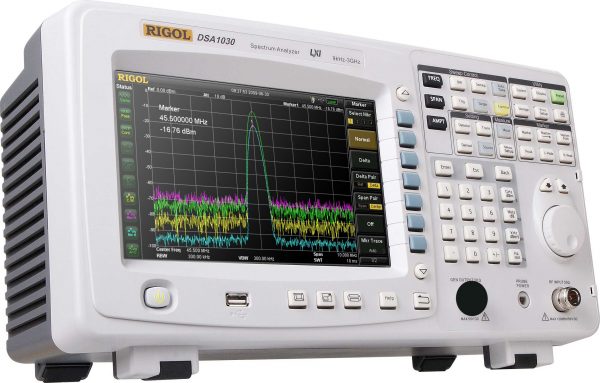

DSA1030
DSA1030A	Yes	Yes
DSA1030A-TG3	Yes	Yes	Yes

The Rigol DSA1030A is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

The very large display (21.6 cm / 8.5″) of the Rigol DSA1030A Spectrum Analyzer provides a resolution of 800×480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.

The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Spectrum Analyzer	Spectrum Analyzer Rigol DSA1030A
Display	21.6 cm (8.5″) TFT-Color-LCD with 65536 colors
Resolution	800 × 480 Pixel
Interfaces	USB-Host (for USB stick i.e. to save/load waveforms) USB for a PC connection LAN for network connection GPIB (IEE-488, General Purpose Interface Bus) The GPIB function is only available with the use of the optional available USB GPIB module VGA interface to connect an external display
Dimensions	399 mm × 223 mm × 159 mm (15.71″ × 8.78″ × 6.26″)
Weight	6.2 kg (13.67 lbs) 7.5 kg (16.54 lbs) with connected battery. The battery is not included.
Supported operation systems	Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)

The complete list of technical specifications can be found in chapter 6 “Specifications” of the manual. A shorter overview is available in the datasheet.

Function	Spectrum Analyzer Rigol DSA1030A
Channels	1
Frequency Range	9 kHz to 3 GHz
Frequency Resolution	1 Hz
Internal Frequency Reference	10 MHz
Span	0 Hz (zero Span) 100 Hz to 3 GHz
DANL (without preamplifier) (Displayed Average Noise level)	100 kHz to 10 MHz 10 MHz to 2,5 GHz 2,5 GHz to 3 GHz	< -85dBm-3x(f/1 MHz)dB typical: -125 dBm < -127dBm-3x(f/1GHz)dB typical -130 dBm < -115dBm
DANL (with preamplifier) (Displayed Average Noise level)	100 kHz to 1 MHz 1 MHz to 10 MHz10 MHz to 2,5 GHz2,5 GHz to 3 GHz	< -103dBm < -103dBm-3x(f/1MHz)dB typical: -143 dBm < -145dBm-3x(f/1GHz)dB typical -148 dBm < -133dBm
Amplitude Range	DANL to 30dBm
Max. Input Voltage	50 V
Sweeptime Range	100 Hz ≤ Span ≤ 3 GHz 0 Hz (zero Span)	10 ms to 3000 s 20 µs to 3000 s
Sweepmodes	Normal or Single
Resolution Bandwidth (RBW)	10 Hz to 1 MHz (in 1-3-10 sequence)
Video Bandwidth (VBW)	1 Hz to 3 MHz (in 1-3-10 sequence)
Input Impedance	50 Ω nominal
