Rigol DSA1030 | 9 kHz to 3 GHz Spectrum Analyzer
Spectrum analyzer from 9 kHz to 3 GHz.
Rigol DSA1030-PA-TG3 Datasheet
Rigol DSA1000 Manual
Rigol DSA1000 Programming Guide
Rigol DSA1000 Quick Guide
Discontinued – Replaced by: DSA832
| Model overview | Adv. Measure Kit | Preamplifier | Tracking Gen. |
|---|---|---|---|
| DSA1030 | |||
| DSA1030A | Yes | Yes | |
| DSA1030A-TG3 | Yes | Yes | Yes |

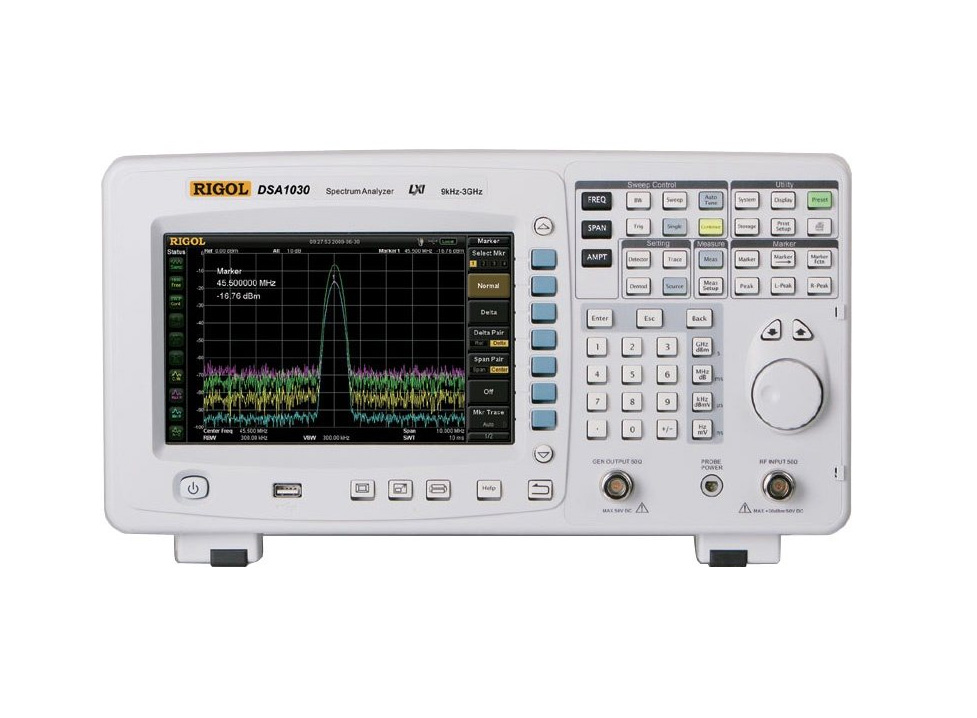

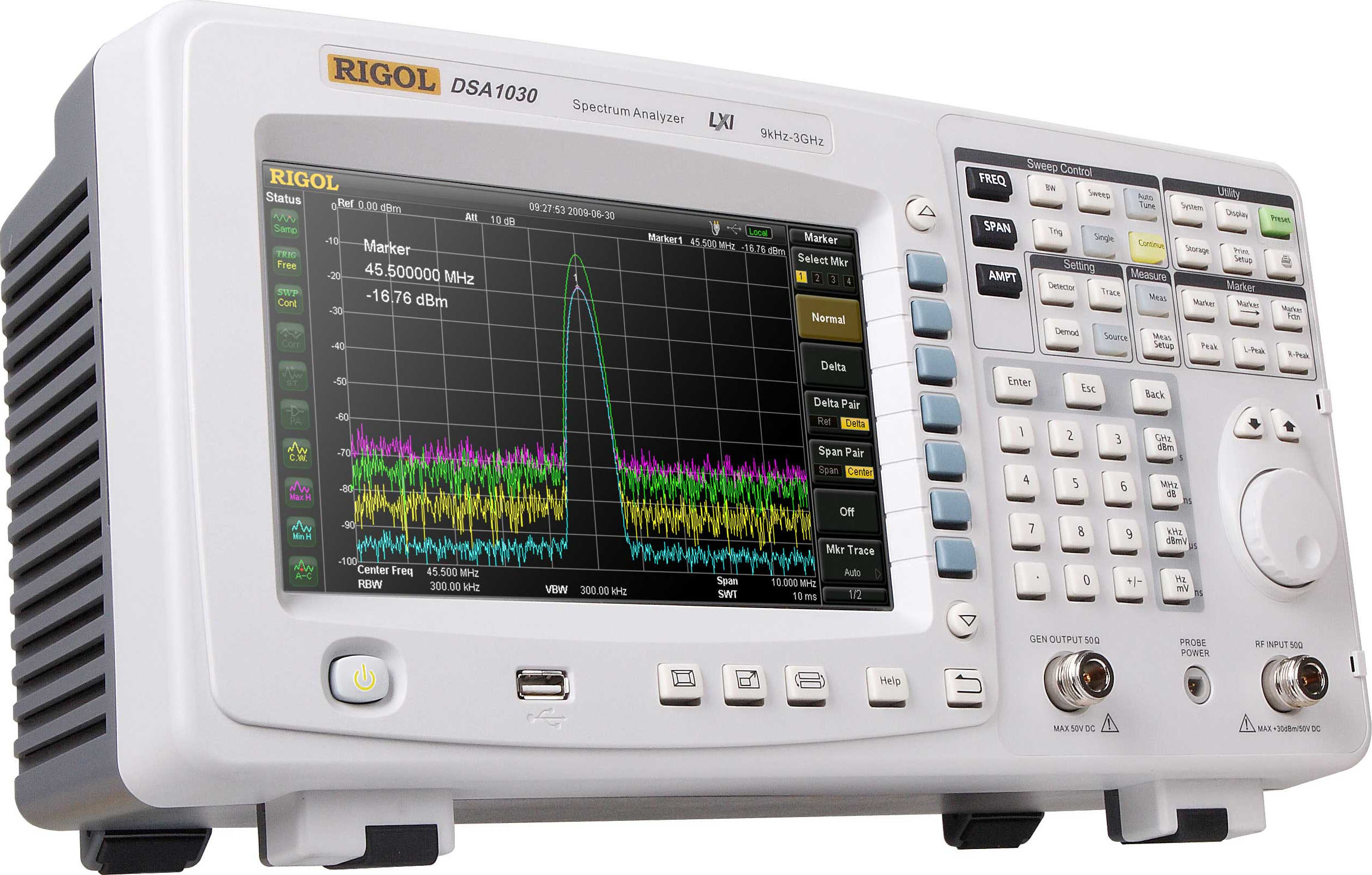

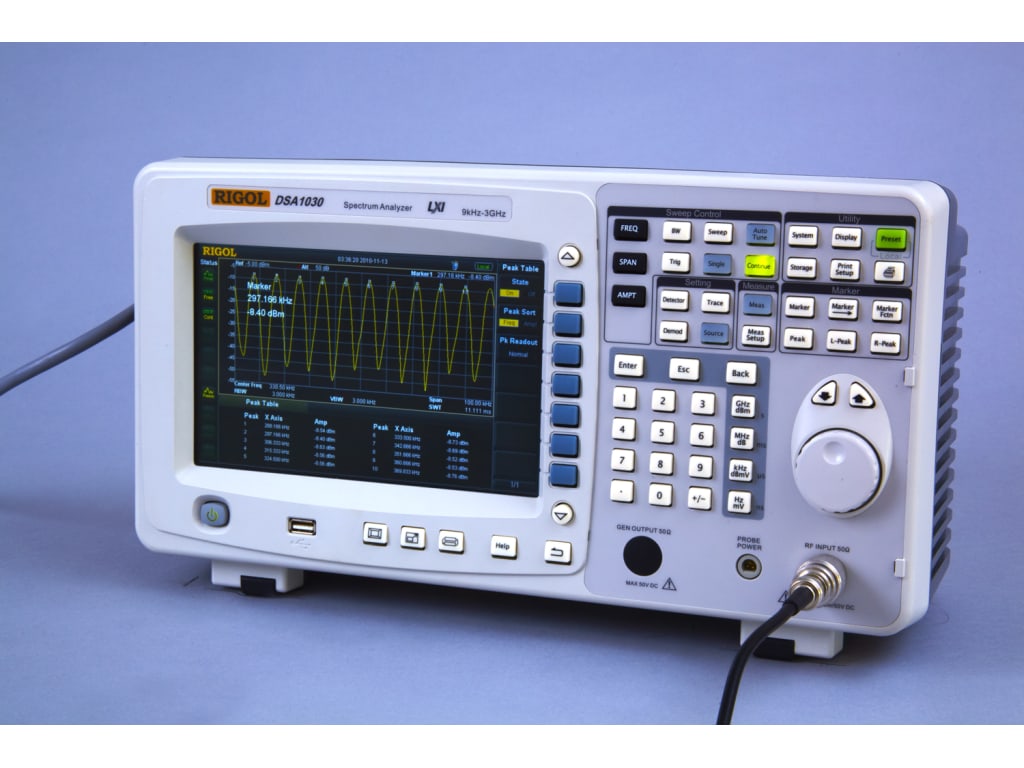

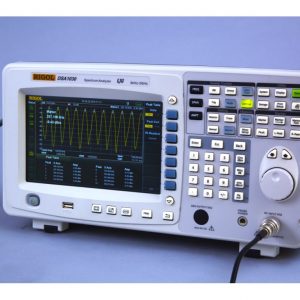

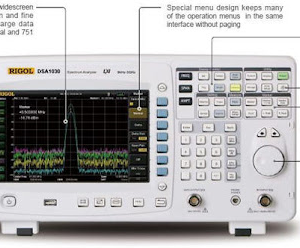

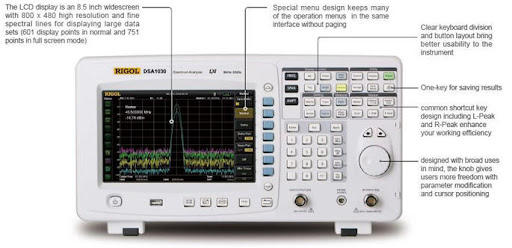

The Rigol DSA1030 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

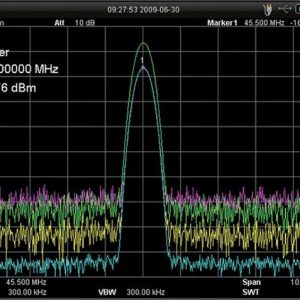

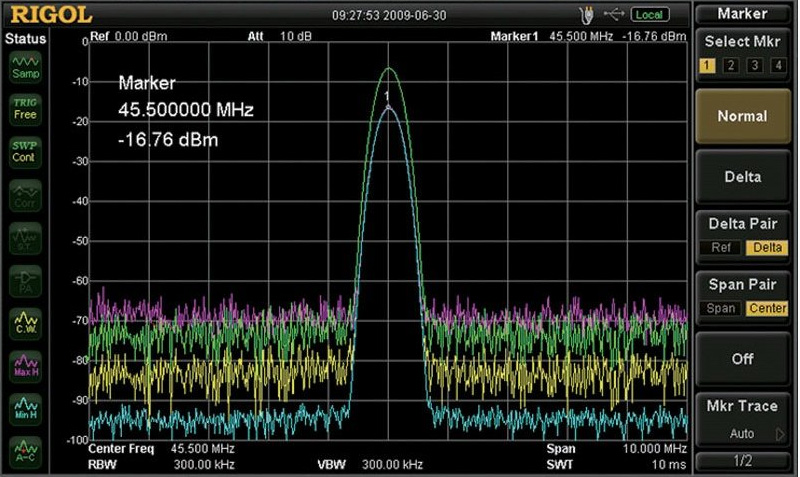

The very large display (21.6 cm / 8.5″) of the Rigol DSA1030 Spectrum Analyzer provides a resolution of 800×480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.
The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

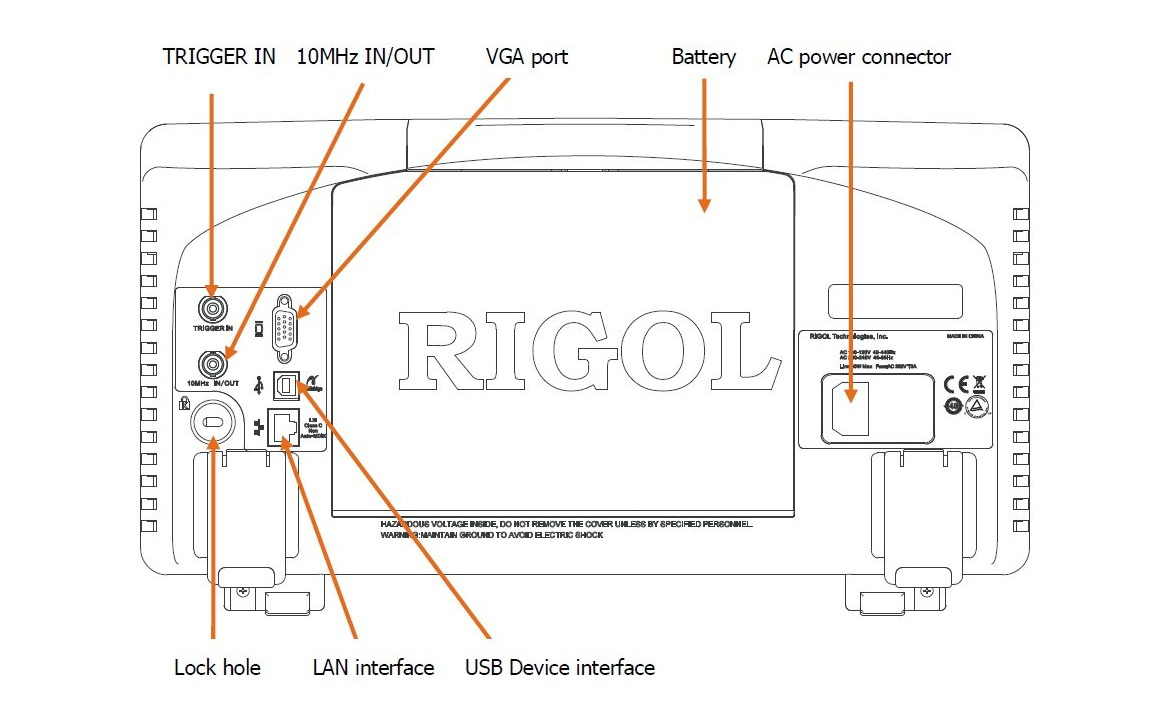

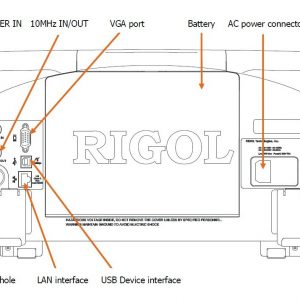

| Spectrum Analyzer | Spectrum Analyzer Rigol DSA1030 |
|---|---|
| Display | 21.6 cm (8.5″) TFT-Color-LCD with 65536 colors |
| Resolution | 800 × 480 Pixel |
| Interfaces |
|
| Dimensions | 399 mm × 223 mm × 159 mm (15.71″ × 8.78″ × 6.26″) |
| Weight | 6.2 kg (13.67 lbs) 7.5 kg (16.54 lbs) with connected battery. The battery is not included. |
| Supported operation systems | Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) |
The complete list of technical specifications can be found in chapter 6 “Specifications” of the manual. A shorter overview is available in the datasheet.
| Function | Spectrum Analyzer Rigol DSA1030 | |
|---|---|---|
| Channels | 1 | |
| Frequency Range | 9 kHz to 3 GHz | |
| Frequency Resolution | 1 Hz | |
| Internal Frequency Reference | 10 MHz | |
| Span | 0 Hz (zero Span) 100 Hz to 3 GHz |
|
| DANL (without preamplifier) (Displayed Average Noise level) |
100 kHz to 10 MHz
10 MHz to 2,5 GHz 2,5 GHz to 3 GHz |
< -75dBm-3x(f/1 MHz)dB typical: -115 dBm < -117dBm-3x(f/1GHz)dB typical -120 dBm < -105dBm |
| DANL (with preamplifier) (Displayed Average Noise level) |
100 kHz to 1 MHz 1 MHz to 10 MHz10 MHz to 2,5 GHz2,5 GHz to 3 GHz |
< -93dBm < -93dBm-3x(f/1 MHz)dB typical: -133 dBm < -135dBm-3x(f/1GHz)dB typical -138 dBm < -123dBm |
| Amplitude Range | DANL to 30 dBm | |
| Max. Input Voltage | 50 V | |
| Sweeptime Range | 100 Hz ≤ Span ≤ 3 GHz 0 Hz (zero Span) |
10 ms to 3000 s 20 µs to 3000 s |
| Sweepmodes | Normal or Single | |
| Resolution Bandwidth (RBW) | 100 Hz to 1 MHz (in 1-3-10 sequence) | |
| Video Bandwidth (VBW) | 1 Hz to 3 MHz (in 1-3-10 sequence) | |
| Input Impedance | 50 Ω nominal |
| Weight | 6,2 kg |
|---|---|
| Dimensions | 159 × 399 × 223 cm |
| Select Model | DSA1030, DSA1030A, DSA1030A-TG |
