Rigol DP1308A | DC power supply, three outputs (+6 V / 5 A, +25 V / 1 A, -25 V / 1 A, max 80 W)
DC power supply with three outputs ( 6 V / 5 A, 25 V / 1 A, -25 V / 1 A, max 80 W).
DP1116A / DP1308A Datasheet
Rigol DP1308A Datasheet
Rigol DP1308A Manual
Rigol DP1308A SCPI Programming Guide
Discontinued – Replaced by: DP832

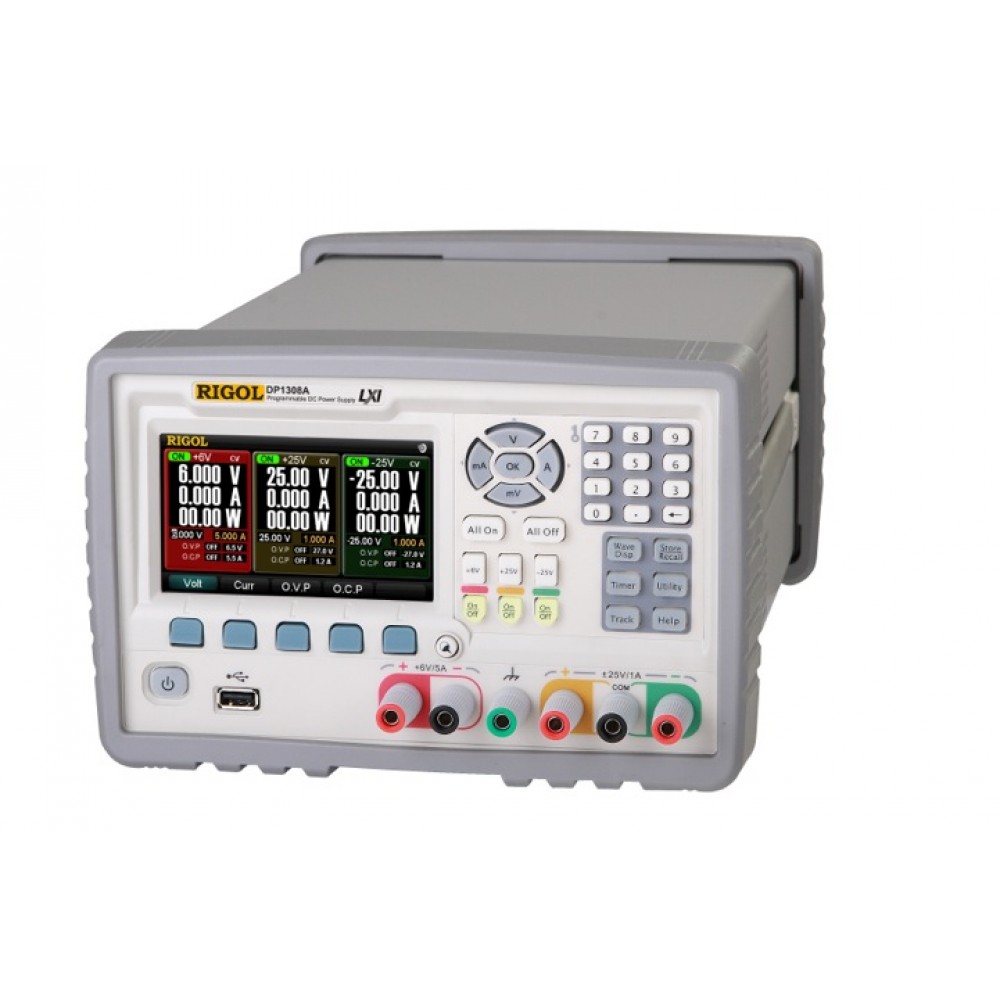

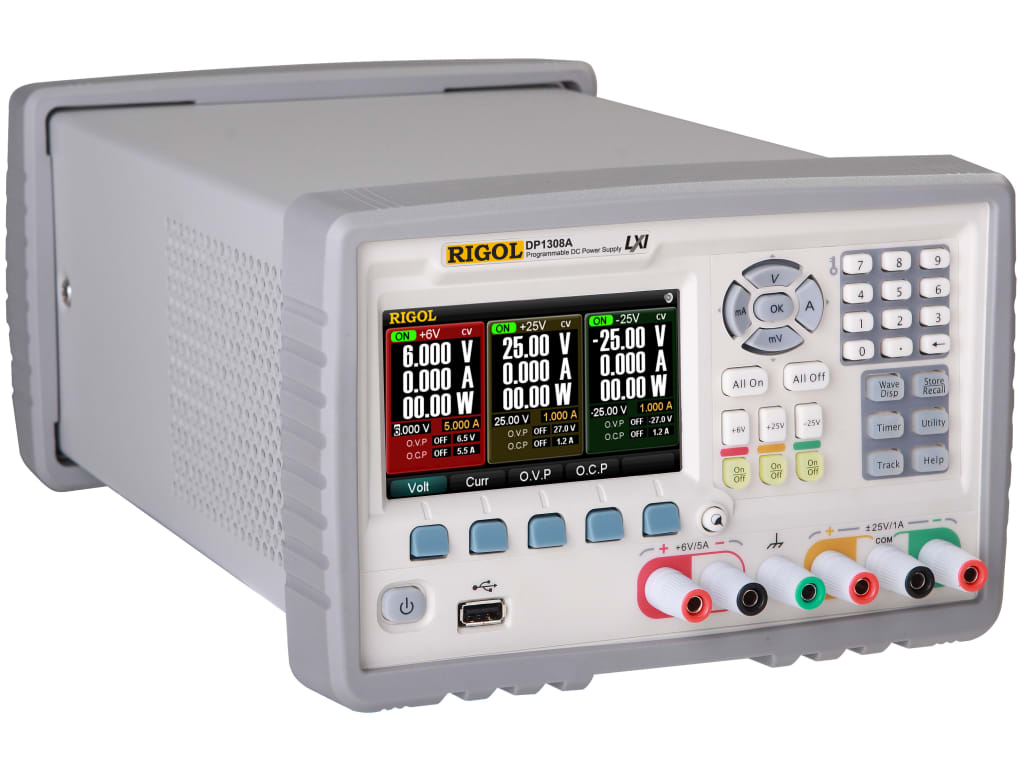

The Rigol DP1308A is a very high quality programmable laboratory power supply with three switchable outputs (6 V/5 A, 25 V/1 A and -25 V/1 A) and a maximum power output of 80 W.
Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.

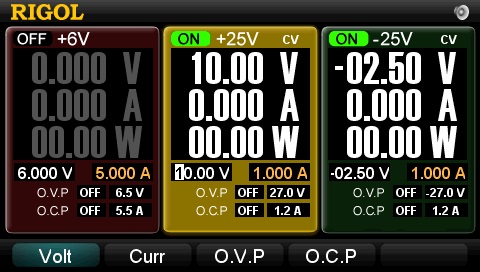

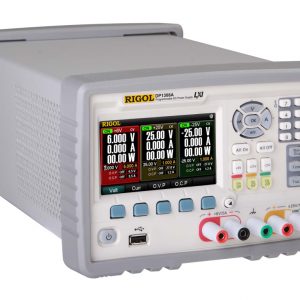

The Rigol DP1308A features a particularly large (10.9 cm / 4.3″) and easy to read TFT color display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 5 steps.

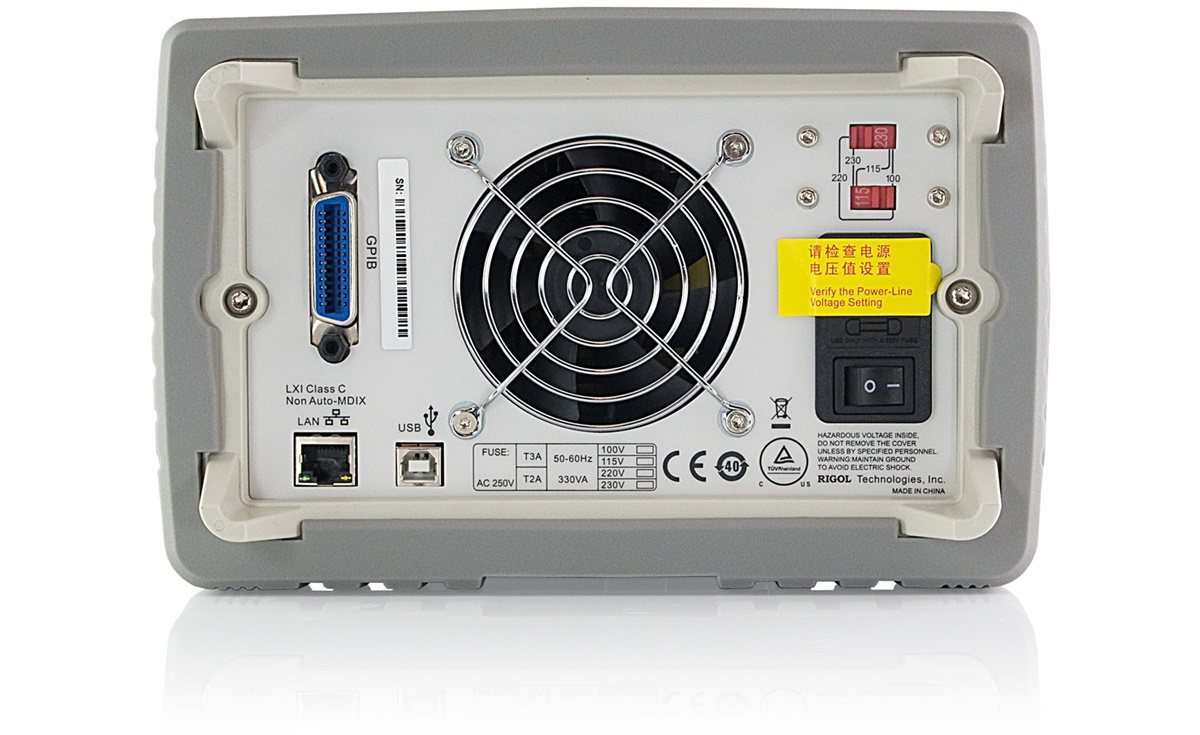

| Specifications | Rigol DP1308A |
|---|---|
| Outputs | 3 |
| Output 1 | 0 to 6 V/DC with max. 5 A |
| Output 2 | 0 to 25 V/DC with max. 1 A |
| Output 3 | 0 to -25 V/DC with max. 1 A |
| Output Power (max.) | 80 W |
| Overtemperature shut down | 55 °C |
| Working Temperature | 0 °C to 40 °C |
| Cooling Method | Fan cooling |
| Output Voltage | Output 1 | Output 2 | Output 3 |
|---|---|---|---|
| Output Voltage | 0 to 6 V/DC | 0 to 25 V/DC | 0 to -25 V/DC |
| Accuracy | ±0,1% 5 mV | ±0,05% 20 mV | ±0,05% 20 mV |
| Resolution | 1 mV | 10 mV | 10 mV |
| Overvoltage Protection | 0,1 V to 6,5 V | 0,1 V to 27 V | -0,1 V to -27 V |
| Load Regulation | < 0,01% 2 mV | ||
| Line Regulation | < 0,01% 2 mV | ||
| Ripple and Noise | < 350 μV rms / 3 mVpp |
| Output Current | Output 1 | Output 2 | Output 3 |
|---|---|---|---|
| Output Current (max.) | 5 A | 1 A | 1 A |
| Accuracy | ±0,2% 10 mA | ±0,15% 4 mA | ±0,15% 4 mA |
| Resolution | 1 mA | 1 mA | 1 mA |
| Overcurrent Protection | 0,1 A to 5,5 A | 0,1 A to 1,2 A | 0,1 A to 1,2 A |
| Load Regulation | < 0,005% 250 μA | ||
| Line Regulation | < 0,01% 250 μA | ||
| Ripple and Noise | < 2 mA rms |
| Programmable power supply | Rigol DP1308A |
|---|---|
| Display | 10,9 cm (4,3″) WVGA-Farb-LCD |
| Resolution | 480 × 272 Pixel |
| Additional Interfaces |
|
| Dimensions (W × H × D) | 23 cm × 15,5 cm × 38,5 cm
(9.05″ × 6.1″ × 15.16″) |
| Weight | 8,4 kg
(18.52 lbs) |
| Supported operating systems | XP, Vista, Win 7 (32Bit 64Bit), Win 8 (32Bit 64Bit), Win 10 (32Bit 64Bit) |
| Input | 230 V/AC, 220 V/AC, 120 V/AC or 110 V/AC (adjustable) |
| Tracking function | The two 25 V outputs can be coupled. When the tracking function is activated, you only need to change one output and the other 25 V output is automatically set to the same value (with the corresponding reverse polarity). |
| Weight | 8,4 kg |
|---|---|
| Dimensions | 38,5 × 23 × 15,5 cm |
