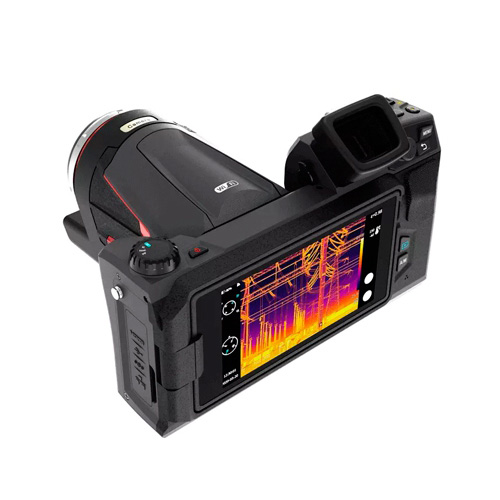

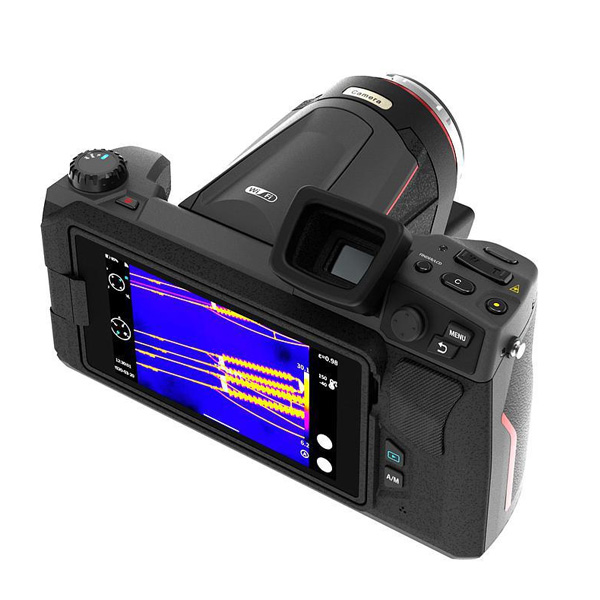

Guide PS800 High Performance Thermal Camera

Measurement and analysis

Measurement range: -40-150℃, 100-800℃ Automatic switching and external lens, extended to 2.000℃, The range of level 3 is: 700℃-2000℃

Measurement accuracy: ±1℃ or ±1%, whichever is greater (standard lens, ambient temperature 23℃±2℃, target temperature 20℃ to 60℃, distance within 3m)

Image displayed

Display screen: 5″ LCD

Eyepiece: 1.280 * 960 LCOS screen

Digital camera: 1.300w

Image mode: IR, VIS, MIF and PIP

Image adjustment: Automatic, semi-automatic, manual

Palette: 8 colors, White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, customized

Storage and transmission

Storage medium: This unit and SD card

Image storage format: JPG with temp info

Video storage without temperature information: Mp4 format can be used to record audio synchronously

Video storage with temperature information: Irgd for temperature analysis

External interface: Type-C, DC (12V), SD card, Gigabit Ethernet, Micro HDMI, tripod interface

Laser: Laser, laser pointer which can be displayed on infrared image, laser ranging, laser focusing

Audio: Microphone (adjustable volume) Speaker (adjustable volume)

Wifi: Yes, it can be connected to the mobile terminal for data transmission

Gps: Available

Bluetooth: Available

4g/5: 4G

Power system

Battery type: Lithium-ion rechargeable battery

Battery working time: ≥3H

Power management: Timed shutdown and sleep mode

Charging mode: The device can be charged through desktop charger after shutdown.

Charging time: 90% of full charge in 2.5 hours

Environmental paraments

Working temperature: -20℃~50℃

Storage temperature: -40℃~70℃

Ip rating: IP54

Drop: 1.2m (with package)

Physical parameters

Weight: ≤1.5Kg (with battery)

Size: 206mm*169mm*135mm

Software kit: ThermoTools
