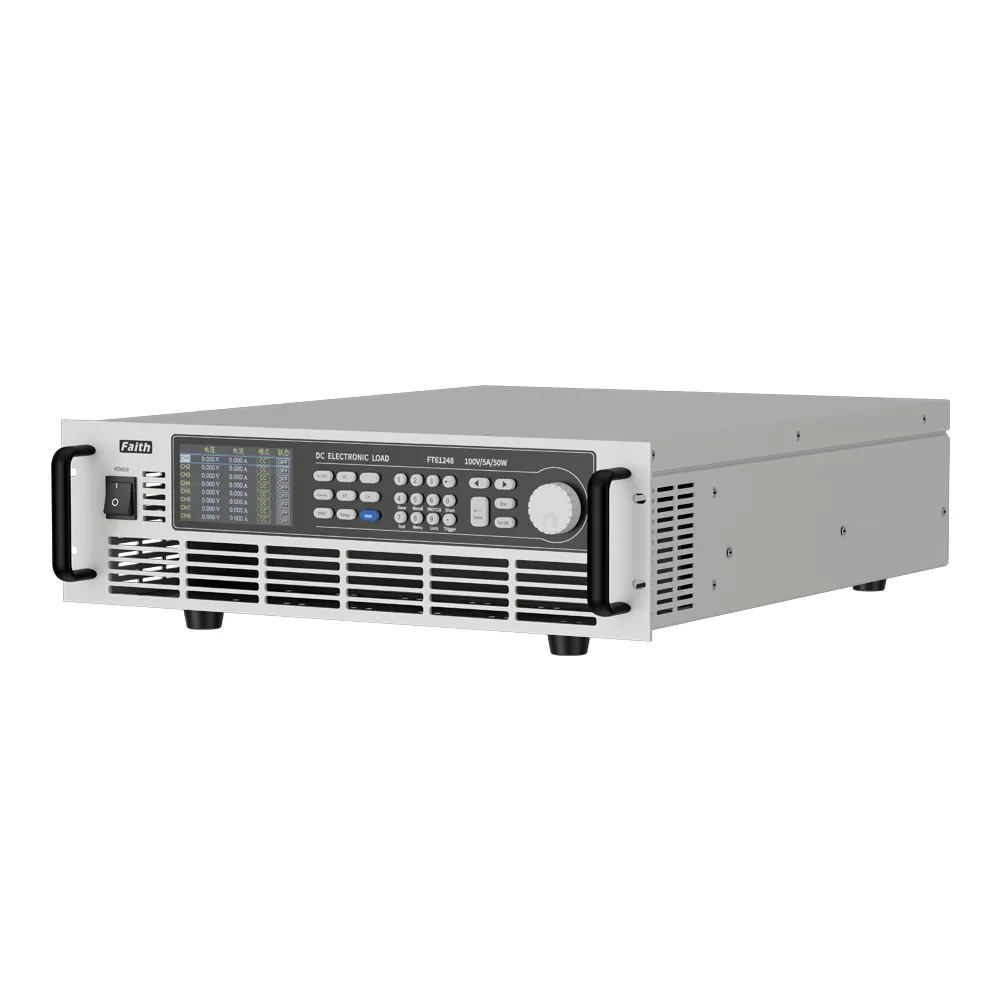

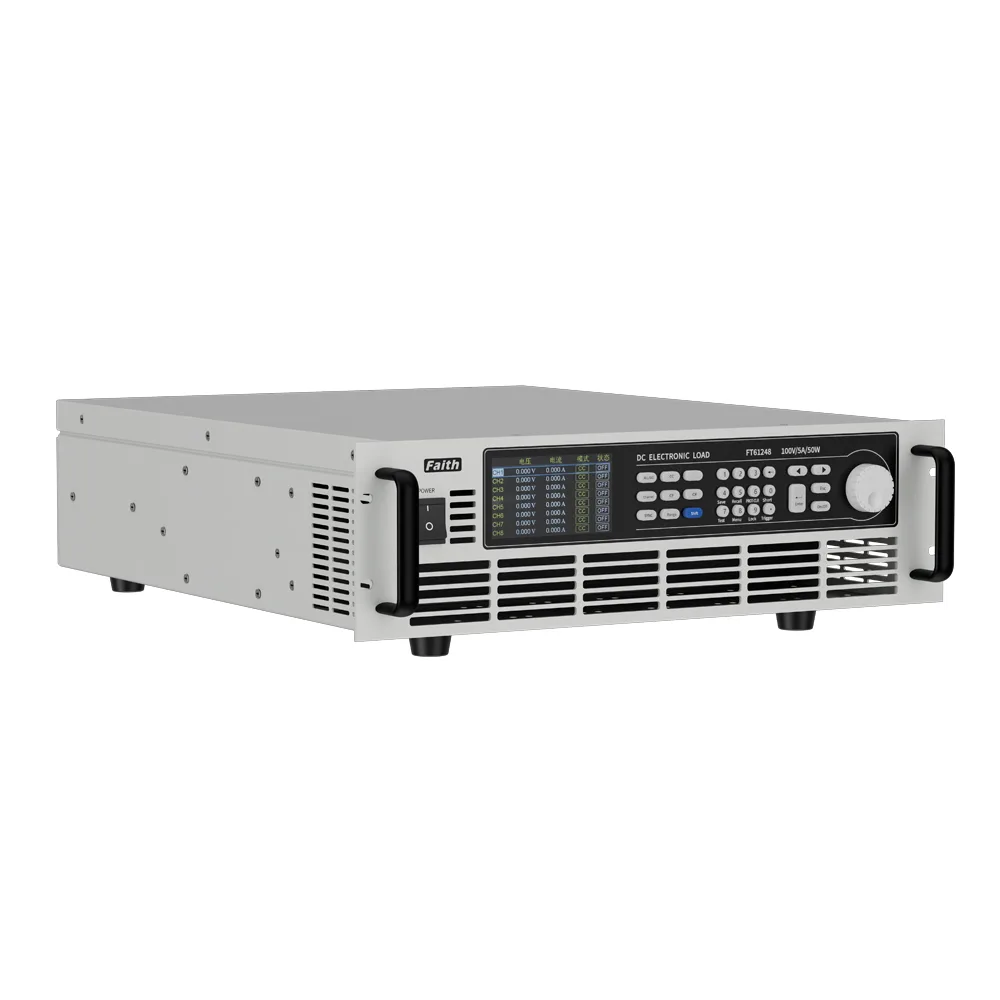

FaithTech Multichannel electronic load array FT6100 series

• Compact structure, economical, cost-effective, and occupy small space;
• Channel modular design is small, can achieve 3U/48CH, only 1/16 of the conventional electronic load;
• Electrical isolation between channels, can be controlled separately or arbitrarily parallel;
• Each channel electronic load power range: 50W ~ 1080W, voltage specifications: 80V, 100V, 500V;
• Electronic load on-load mode: CC, CV (some models do not support), CR, CP four test modes;
• Channel support dynamic and sequence functions, load current and timing can be edited;
• With time measurement function, battery discharge function;
• OCP/OVP/OPP/OTP multiple protection;
• Standard RS485, LAN, support standard MODBUS communication protocol;
• Perfect dynamic link library, easy to secondary development;
• Standard with complete functions of the upper computer software;
• High reliability, long mean time between failures;

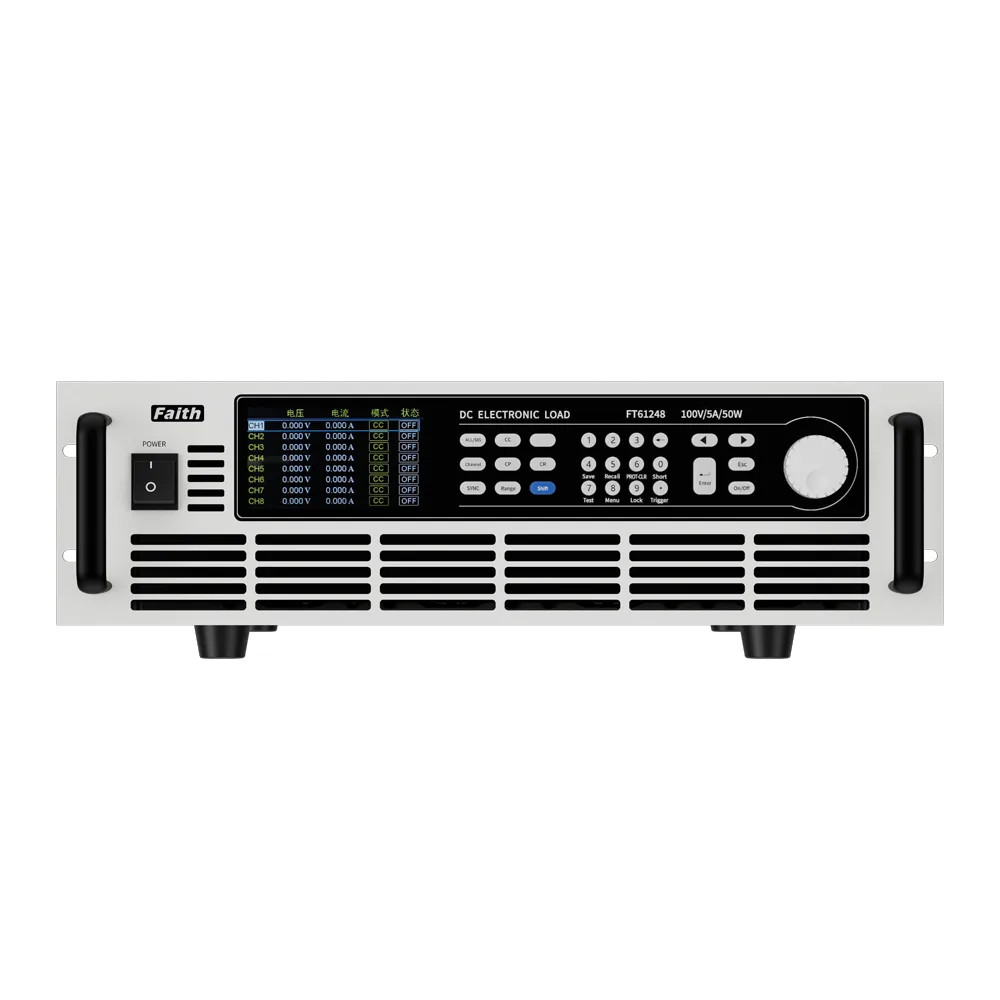

• LCD display, can display each channel voltage, current, power and status;
• With over voltage, over current, over power, over temperature protection;
• Standard 19 inches, can be installed in the cabinet;
• Intelligent fan design, good heat dissipation and low noise.

The FT6100 series is a full-featured multi-channel programmable DC electronic load product based on highly reliable, highly integrated applications. Products are tailor-made for integrated applications and are highly cost-effective. In most integrated applications, it can replace the small power single electronic load, saving a lot of space for system construction, and significantly saving costs.

Developed specifically for embedded integrated applications, the FT6100 is a standard 19-inch chassis, equipped with RS485, LAN communication interfaces, and Modbus-RTU. Support Visual C++, C#, Delphi, Visual Basic, Labview and other most of the software platform for secondary development, users can customize their own application software according to needs.

| Application field

Production, aging and quality inspection of low-power power supply products such as low-power power supply, DC converter, mobile phone charger, 3C battery, BMS, etc. Automotive wiring harness, connectors, fuses, relays, central electrical box and other product testing; Battery pack, BMS protection board balanced discharge, power tool production testing, LED power board production testing and other related fields。

| 3U/12CH High integration

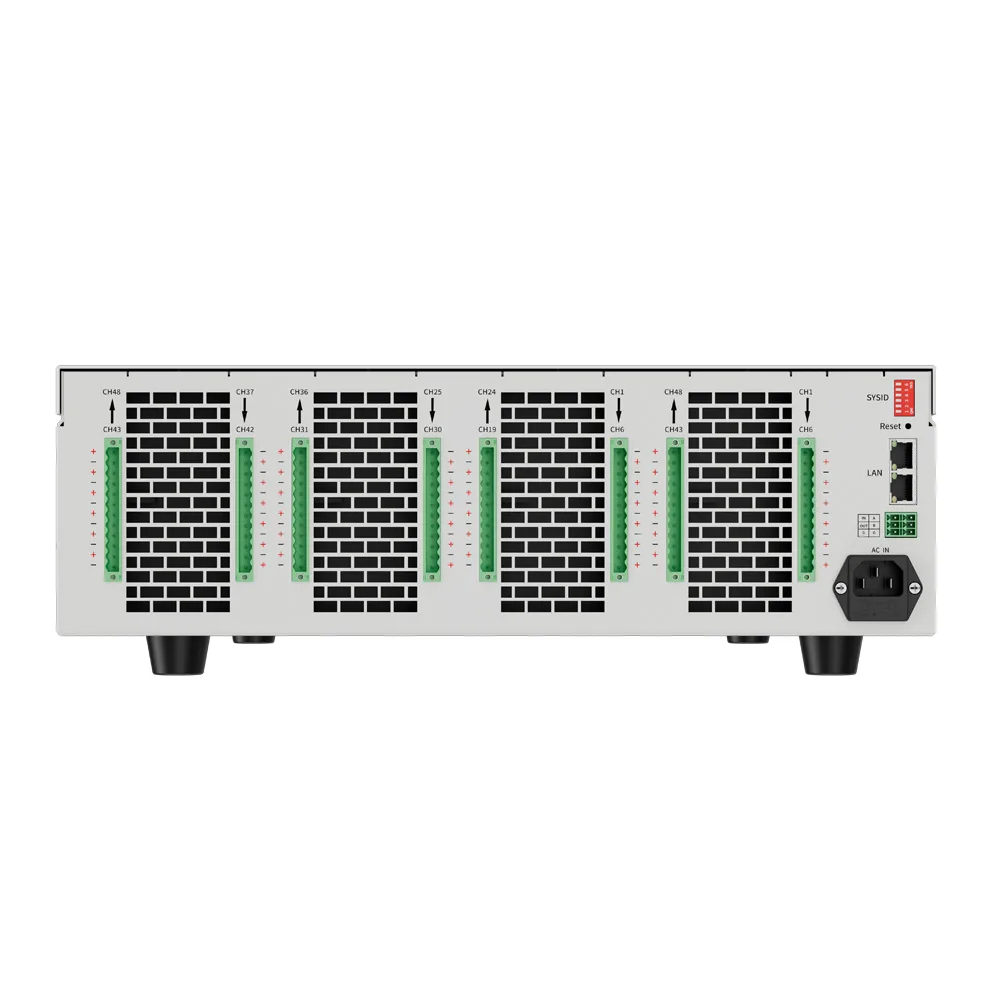

The FT6100 series adopts a highly integrated design, and a single 3U can integrate 48 electronic load channels, which is three-quarters smaller than the traditional electronic load volume, and greatly compresses the space of the integrated system. Each channel is electrically isolated, independent of each other, and can be controlled separately.

| Steady-state function

FT6100 series electronic load has four test modes of constant current, constant voltage (some models do not support), constant resistance and constant power, which can meet a wide range of test requirements. Constant current and constant resistance modes can be used to test whether the output voltage of the voltage source maintains a stable output under different load conditions. For battery chargers and adapters, constant voltage mode can change the output voltage of the charger and adapter to verify that the output current is correct.

| Dynamic function

The FT6100 series of electronic loads provides programmable dynamic testing capabilities. The dynamic mode is used to simulate all kinds of on-load sudden changes and anomalies, and is suitable for testing the dynamic characteristics of power supplies. The setting range of dynamic pulse width is 50us ~ 60000m.

|Sequence function

The FT6100 series of electronic loads provides serial testing capabilities. You can edit up to 20 test files with 100 steps each. Support CC, CV (some models do not support), CR, CP and other modes of load timing changes, and also support file link and other sequence editing functions. A maximum of 2000 timing steps can be edited. The time range of a single step is 1ms to 86400s.

|Application programming

The FT6100 provides a LAN or RS485 interface for multi-machine integration and can be easily integrated into the test system. Communication adopts standard Modbus protocol and provides detailed programming manual and DLL development kit, supports C#, C++, Delph, Labview development languages, convenient secondary development. To facilitate debugging, the product comes with a Demo software, which can perform all functions of the load system, waveform display, and data saving functions. The software system is easy to operate and powerful, and users can easily use it.
