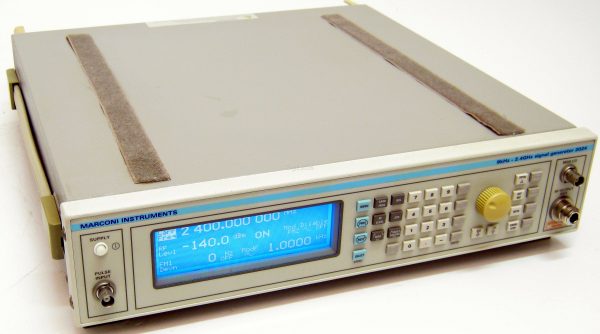

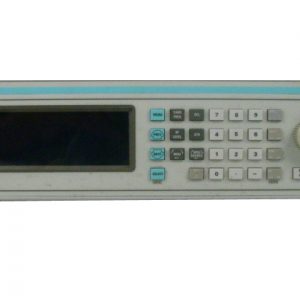

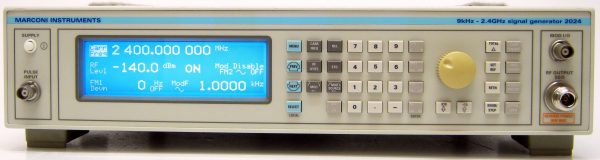

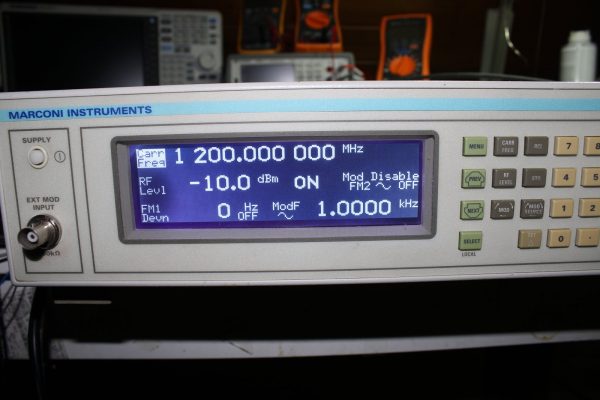

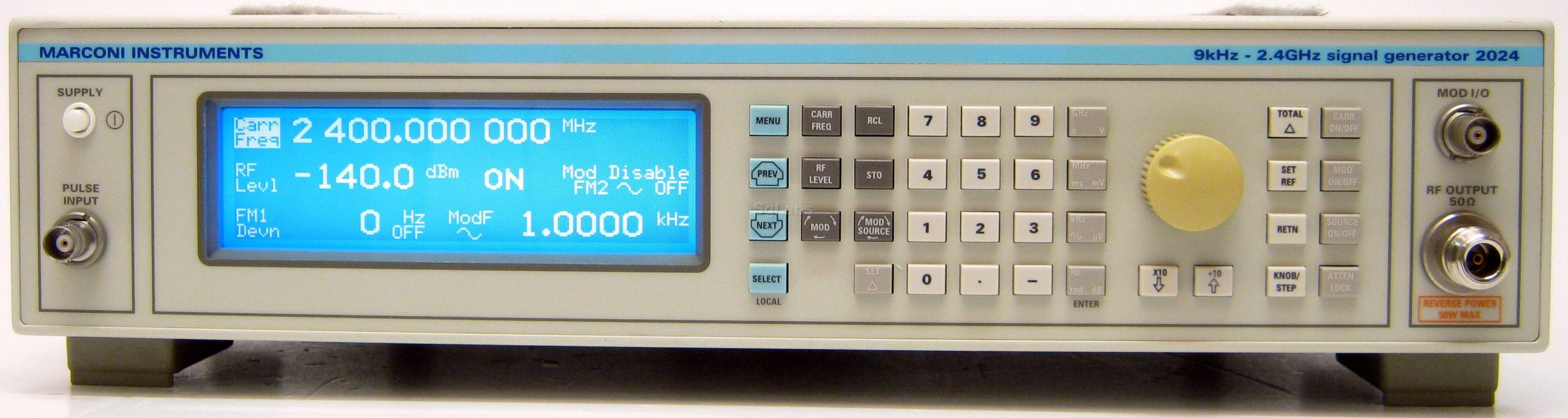

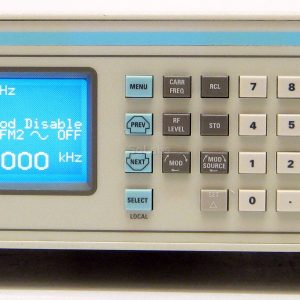

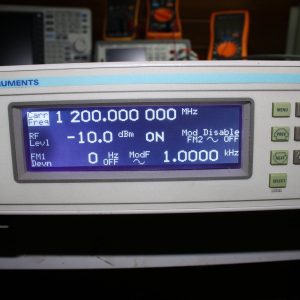

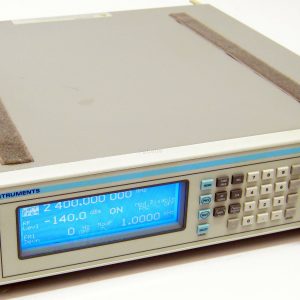

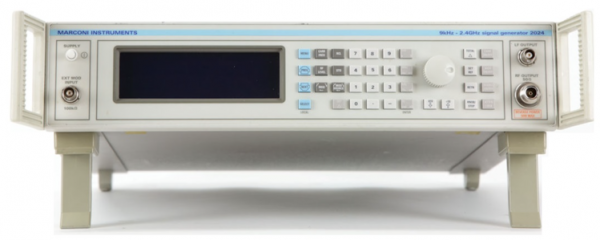

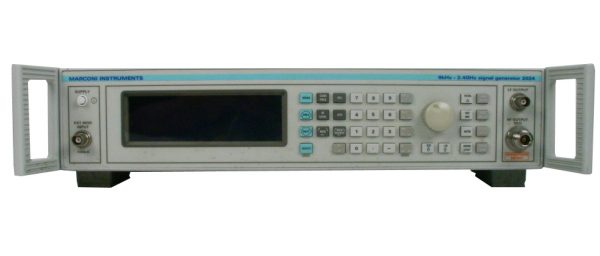

Marconi 2024 | 2.4GHz RF Generator
R22,460.00 exVat
The Marconi 2024 is a portable and lightweight Synthesized Signal Generator with a frequency range of 9 kHz to 2.4 GHz with a resolution of 1 Hz across the band and a RF output up to +25 dBm with a resolution of 0.1dB. The RF output of the 2024 can be amplitude, frequency, phase or pulse modulated.
Download Marconi 2024 DataSheet
Download Marconi 2024 Operating Manual
Technical details:
- Frequency range 9 KHz – 2.4 GHz
- Frequency resolution 1 Hz
- Output level range from -137 dBm to +13 dBm (+25 dBm Opt.11)
- Output level resolution0.1 dB
- Modulation AM, FM, FSK two or four levels, Phase and pulse
- Reverse power 50 W protection
- Sweep linear and logarithmic
Possible Options
- Options 04: High stability frequency standard
- Options 11: Fast pulse and high power
- Max frequency: 2.4 GHz
- Minimum Frequency: 9 KHz
- Modulation: AM, FM, FSK two or four levels, Phase and pulse
- Max. Output level: +13 dBm (25 dBm opt.11)
- Min. output level: -137 dBm
- Resolution: 1 Hz
