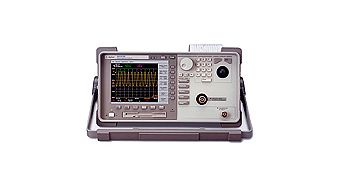

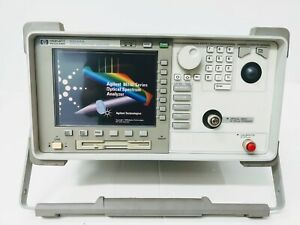

Agilent 86143A | Portable Standard Performance Optical Spectrum Analyzer
R68,000.00 exVat
- Built-in test applications
- 10 pm wavelength accuracy
- Fast dual-sweep method
- Covers S, C, and L wavelength bands
The Keysight 86143B is a portable optical spectrum analyzer for 50 GHz applications. The 86143B maintains most of the higher performance characteristics of the 86142B/86145B models while providing measurement solutions at value prices. This OSA has all the performance capabilities of its larger sibling, the 86140B, while having a smaller 12.8″ x 16.8″ footprint and weighing 31 lbs. The 86143B is ideal for both field and factory use, particularly in high level system installation or situations where space is limited. With the 86143B you can quickly, easily and accurately characterize 50 GHz and wider WDM systems, optical sources and broadband components with its enhanced marker functionality, integrated power measurement capability and fast sweep speed.
1 in stock
Performance Characteristics
-
-
- Form Factor Benchtop
- Fiber Type Singlemode
- Minimum Wavelength 600 nm
- Maximum Wavelength 1700 nm
- Minimum Wavelength Resolution 0.7 nm
- Maximum Wavelength Resolution 10 nm
- Minimum Span 0.2 nm
- Maximum Span 0 nm
- Minimum Input Decibel -90 dBm
- Maximum Input Decibel -60 dBm
- Maximum Dynamic Range -52 dB
- Measurement Accuracy 0.1 dB
- Minimum Sweep Time 180 ms
- Maximum Sweep Time 650 ms
- Connector type (main signal) FC/PC
-
Measurements/Features
-
-
- 6 traces, 4 general markers
- Bandwidth, Noise, Delta marker
- Store traces/setups in/ext mem
- Realtime sweep rates
- High-speed data transfer
- 6.4″ active matric LCD display
- Built-in printer
- Measurement Accuracy: 0.1dB
-
Programmability/Connectivity
-
-
- User Interface Proprietary
- Ports to Peripheral Devices HPIB,Parallel
- Data Storage Type FDD,HDD
- Programming Language C++,Labview, Visual Basic
-
Life Cycle Data
-
-
- Out of Production Jan-01-2001
- Out of Support Apr-05-2006
-
Compliance
-
-
- CE Compliance Not on file
- UL Compliance Not compliant
-
Power Requirements
-
- Input Power Universal (Auto Sense and Switch)
