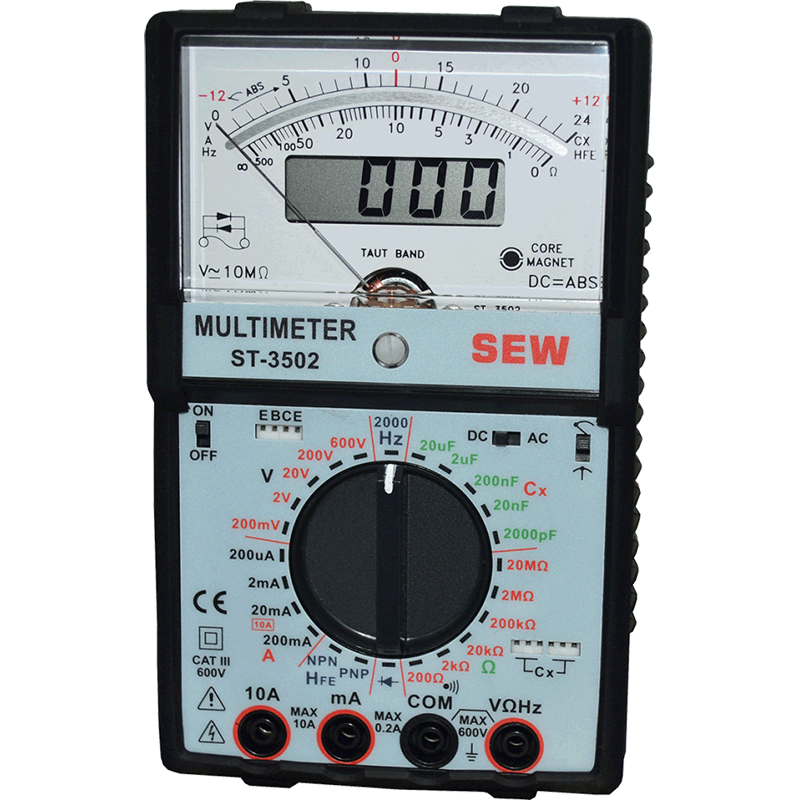

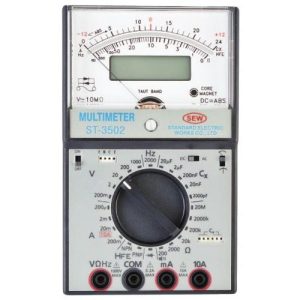

ST-3502 Analog + Digital Multimeter
R4,845.00 exVat
● 3½ digit, high contrast LCD (max display of 1999).
● Automatic polarity indication, zero adjustment.
● Low battery (BAT) indication.
● Over range indication: highest digit of (1) or (-1).
● Dimensions: 175(L) × 109(W) × 44(D)mm
● Safety standards: EN 61010-1 CAT III 600V. EN 61326-1.
Analog display
● Large 90º wide and 84mm long mirror scale (adapted to digital, analogue max indication 2400).
● Shock and vibration resistant TAUT BAND movement.
● Pointer can be selected to either left-hand zero (normal mode) or center zero (galvo-mode).
● In galvo-mode pointer deflects right to indicate positive polarity and left to indicate negative polarity.
● Automatic center zero and ohm zero.
Specifications
● DC Voltage: 200mV. 2V. 20V. 200V. 600V.
– Analog Max: 240mV. 2.4mV. 24V. 240V. 600V.
– Resolution digital: 100μV. 1mV. 10mV. 100mV. 1V.
– Accuracy: Digital ±(1%rdg+1dgt). Analog ±3% F.S.
● AC Voltage: 200mV. 2V. 20V. 200V. 600V.
– Analog Max: 240mV. 2.4mV. 24V. 240V. 600V.
– Resolution digital: 100μV. 1mV. 10mV. 100mV. 1V.
– Accuracy Digital: ±(1%rdg+5dgt), ±(1.5%rdg+5dgt) for 600V.
– Accuracy Analog: ±3% F.S.
● DC Current / AC Current: 200μA. 2mA. 20mA. 200mA. 10A.
– Analog Max: 240mV. 2.4mV. 24V. 240V. 600V.
– Resolution digital: 100nA. 1μA. 10μA. 100μA. 10mA.
– Accuracy Digital: ±(1%rdg+5dgt), ±(2.0%rdg+3dgt) for 10A.
– Accuracy Analog: ±3% F.S.
● Resistance: 200Ω. 2kΩ. 20kΩ. 200kΩ. 2MΩ. 20MΩ.
– Analog Max: 5kΩ. 50kΩ. 500kΩ. 5MΩ. 50MΩ. 500MΩ.
– Resolution digital: 100mΩ. 1mΩ. 10Ω. 100Ω. 1kΩ. 10kΩ.
– Accuracy Digital: ±(1%rdg+5dgt), ±(1.5%rdg+5dgt) for 20MΩ.
– Accuracy Analog: ±4%arc -10Ω for 200Ω & 2kΩ. ±4%arc for 20kΩ-20MΩ.
● Capacitance: 2000pF. 20nF. 200nF. 2uF. 20uF.
– Analog Max: 2400pF. 24nF. 240nF. 2.4uF. 24uF.
– Resolution digital: 1pF. 10pF. 100pF. 1nF. 10nF.
– Accuracy: Digital ±(3%rdg+10dgt). Analog ±5% F.S.
● Frequency: 2000Hz.
– Analog Max: 2400Hz.
– Resolution digital: 1Hz.
– Accuracy: Digital ±(2%rdg+3dgt). Analog ±3% F.S.
● Instant Continuity: 200Ω.
– Analog Max: 5kMΩ.
– Resolution digital: 100mΩ.
– Continuity Indication: Built Buzzer sounds when Resistance is less than 40Ω.
