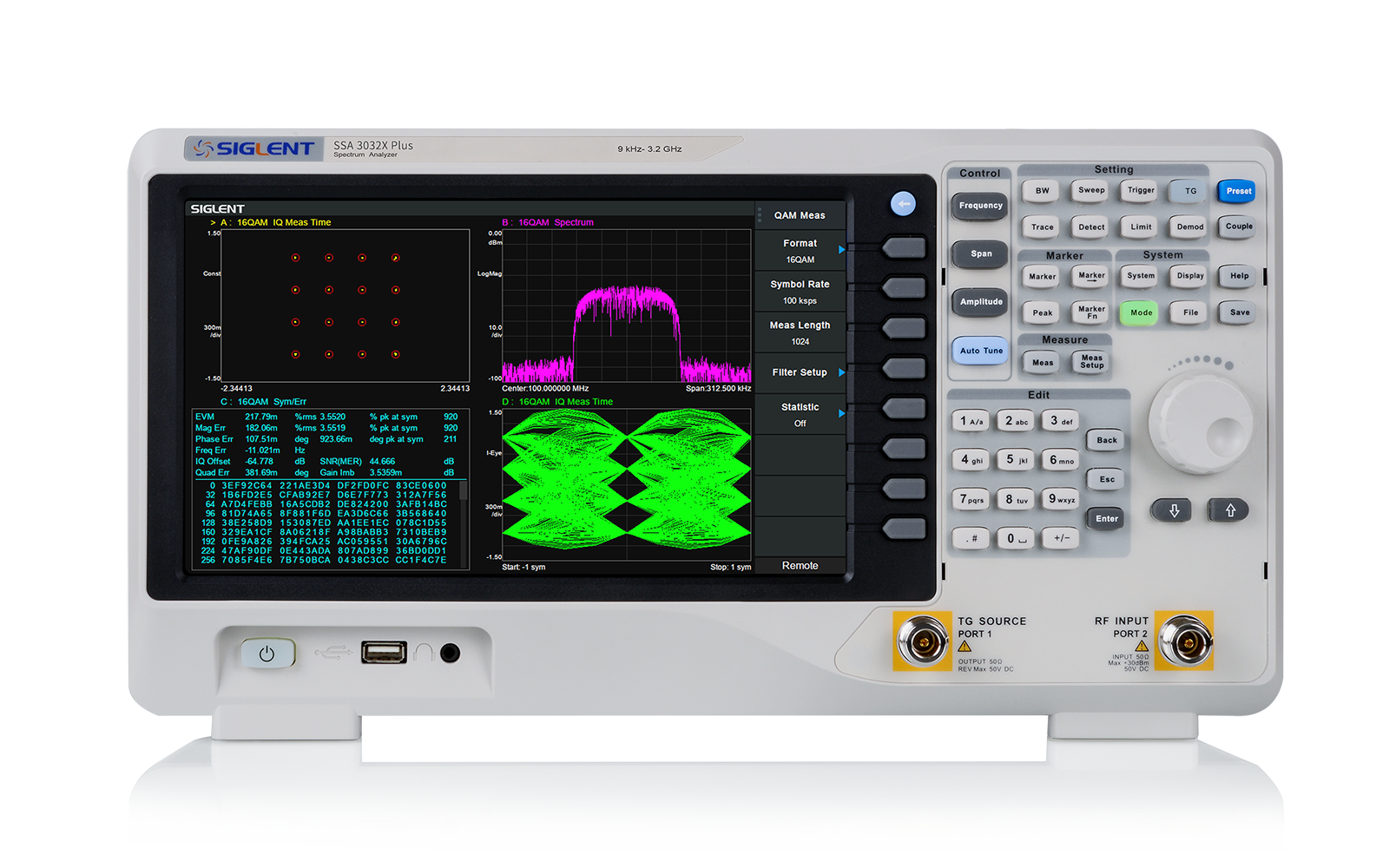

SIGLENT SSA3032X Plus | 9 KHz~3.2 GHz Spectrum Analyzer

Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1 GHz / 3.2 GHz. The Plus family adds features such as 10.1 inch Multi-Touch screen display, mouse and keyboard control. A web browser-based software control via LAN is also included. With their light weight, small size, and friendly user interface, the SSA3000 Pluses present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.

Key Features

• All-Digital IF Technology
• Frequency Range from 9 kHz up to 3.2 GHz
• -161 dBm/Hz Displayed Average Noise Level (Typ.)
• -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
• Total Amplitude Accuracy < 0.7 dB
• 1 Hz Minimum Resolution Bandwidth (RBW)
• Standard Preamplifier
• Up to 3.2 GHz Tracking Generator Kit (Opt.)
• Reflection Measurement Kit (Opt.)
• Advanced Measurement Kit (Opt.)
• EMI Pre-compliance Measurements Kit (Opt.)
• 10.1 lnch WVGA（1024×600）Display

10.1 lnch Display with Multi-Touch Screen



Phase noise <-98 dBc/Hz@1 GHz

Key Features:

• Spectrum Analyzer Frequency Range from 9 kHz up to 2.1 GHz / 3.2 GHz / 7.5 GHz
• -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
• Level Measurement Uncertainty < 0.7 dB (Typ.)
• 1 Hz Minimum Resolution Bandwidth (RBW)
• Preamplifier Standard Tracking Generator (Opt.)
• Analog and Digital Signal Modulation Analysis Mode (Opt.)
• Reflection Measurement Kit (Opt.)
• EMI Filter and Quasi-Peak Detector Kit(Opt.)
• Advanced Measurement Kit (Opt.)
• 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
• Web Browser Remote Control on PC and Mobile Terminals and File Operation

Minimum 1 Hz Resolution Bandwidth (RBW)

Accessoires Included:

1 x Siglent SSA3032X  PLUS with TG
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
