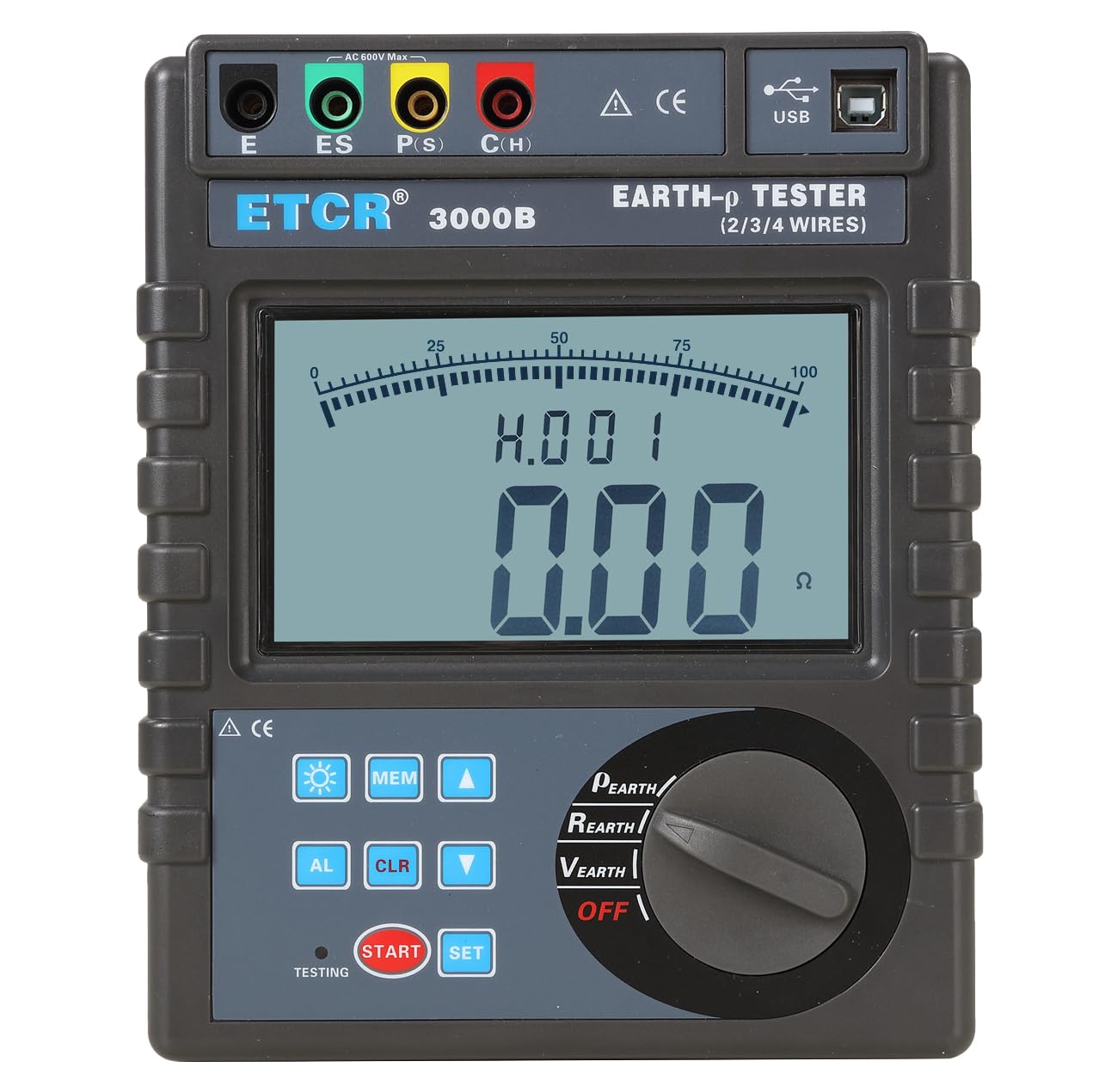

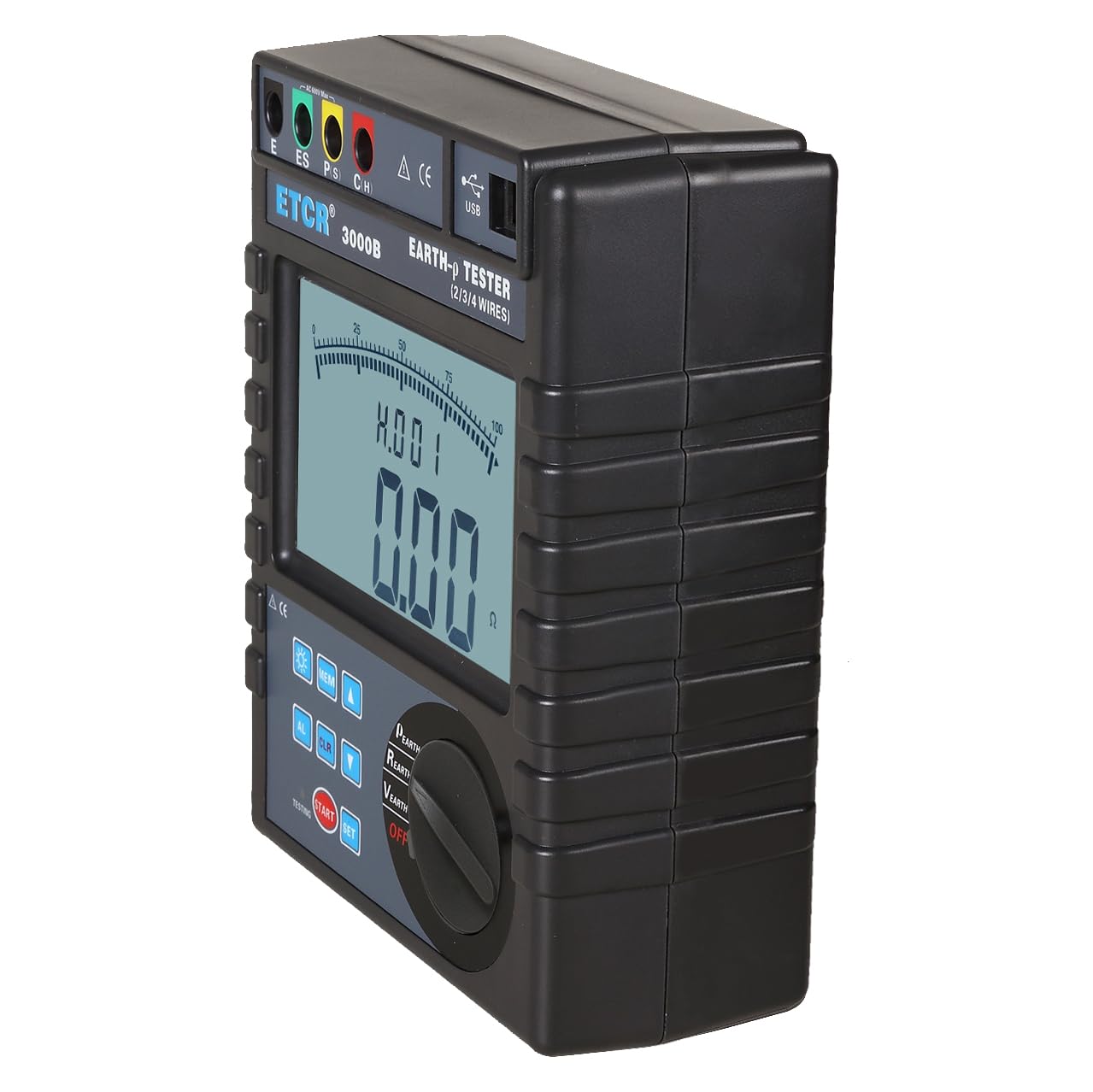

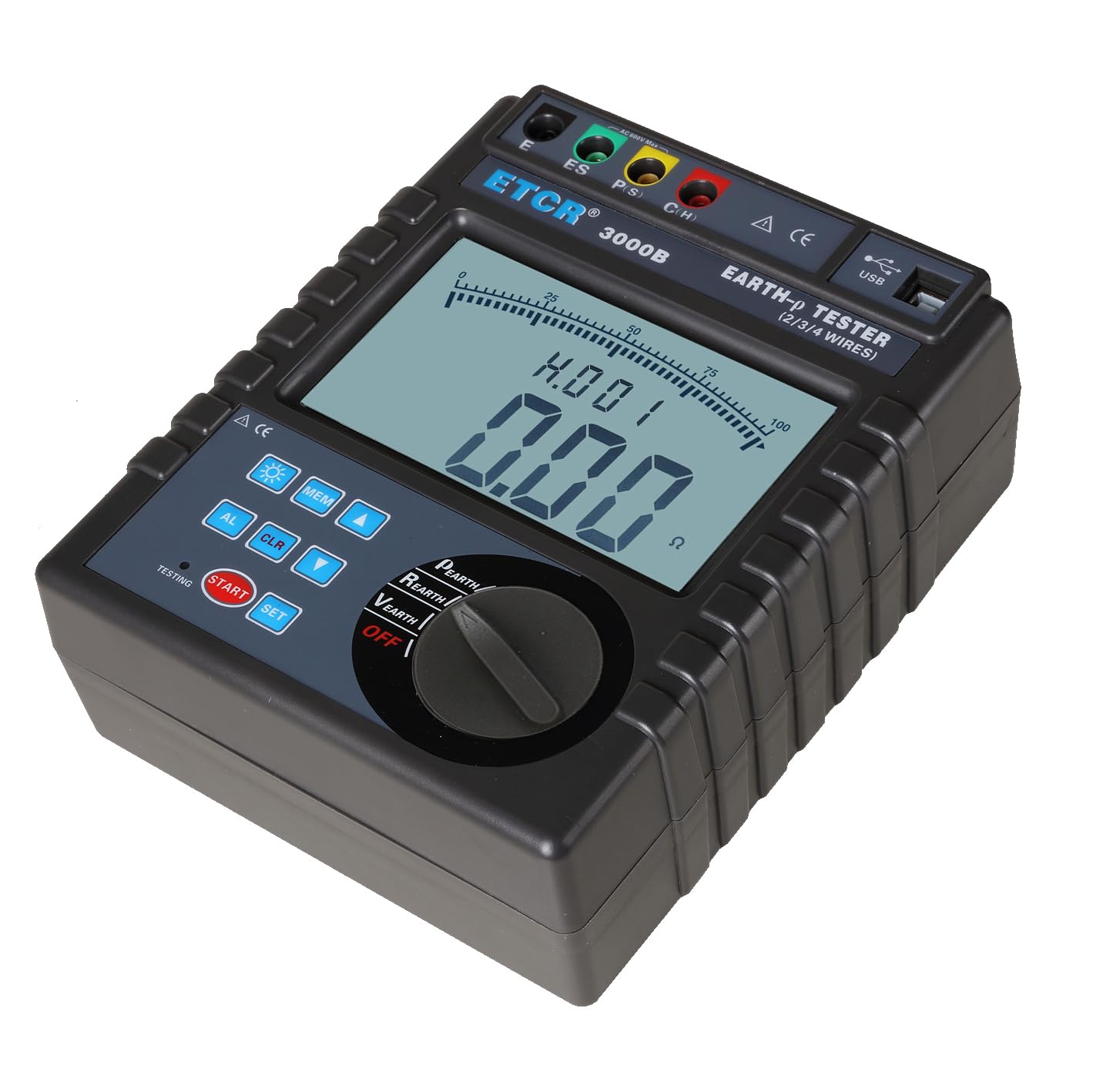

ETCR3000B 4-Terminal Earth Resistance And Soil Resistivity Tester

Name: ETCR3000B 4-Terminal Earth Resistance And Soil Resistivity Tester
SKU: 472
Availability: InStock

R11,825.00 exVat

Introduction ETCR3000B soil resistivity tester is specially designed and manufactured for on-site measurement of grounding resistance, soil resistivity, grounding voltage, and AC voltage. It adopts digital and micro-processing technology, precise 4-wire method, 3-wire method and simple 2-wire…

Download Brochure

2 in stock

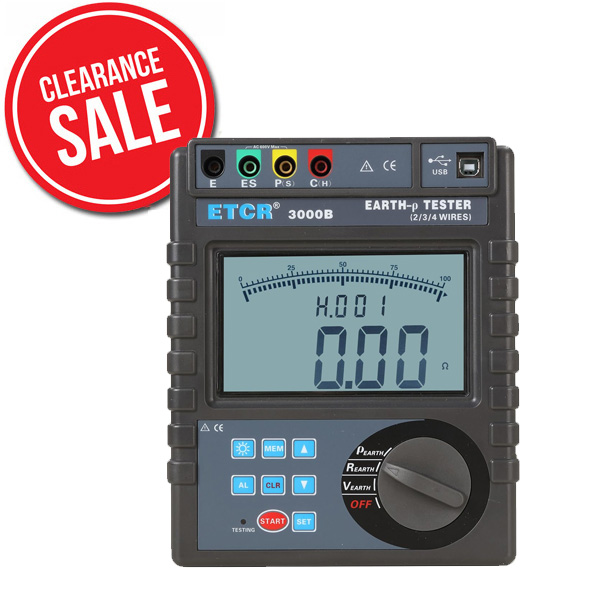

Categories: Clearance Sale, Earth Resistance Tester Tags: 4-Terminal Earth Resistance And Soil Resistivity Tester, Earth Resistance Tester, ETCR3000B 4-Terminal Earth Resistance And Soil Resistivity Tester, ETCR3000B 4-Terminal Earth Resistance Tester, ETCR3000B Earth Resistance Tester, HZRC3000B 4-Terminal Earth Resistance And Soil Resistivity Tester, HZRC3000B Earth Resistance Resistivity Tester, HZRC3000B Earth Resistance Tester

Description

Product Details of ETCR3000B 4-Terminal Earth Resistance And Soil Resistivity Tester

Huazheng Electric Manufacturing (Baoding) Co., Ltd. is one of the leading manufacturers and suppliers of ETCR3000b 4-terminal earth resistance and soil resistivity tester in China. Please feel free to buy high quality equipment for sale here from our factory. Good service and reasonable price are available.IntroductionHZRC3000B soil resistivity tester is specially designed and manufactured for on-site measurement of grounding resistance, soil resistivity, grounding voltage, and AC voltage. It adopts digital and micro-processing technology, precise 4-wire method, 3-wire method and simple 2-wire method. Method to measure ground resistance, import FFT (Fast Fourier Transform) technology, AFC (Automatic Frequency Control) technology, automatically identify interference and select the measurement frequency, minimize the impact of interference, and provide more accurate ground resistance. It has unique anti-interference ability and environmental adaptability, and good consistency of repeated tests, ensuring high precision, high stability and high reliability of long-term measurement. It is widely used in electric power, telecommunications, meteorology, oil fields, construction, lightning protection and industrial electrical equipment, such as ground resistance, soil resistivity, ground voltage, AC voltage measurement.

Function	Measurement of 2/3/4-pole earth resistance, soil resistivity, earth voltage, AC voltage
Power Supply	DC 9V(Zi-Mn dry battery R14S 1.5V 6 PCS, continuous standby for 300 hours )

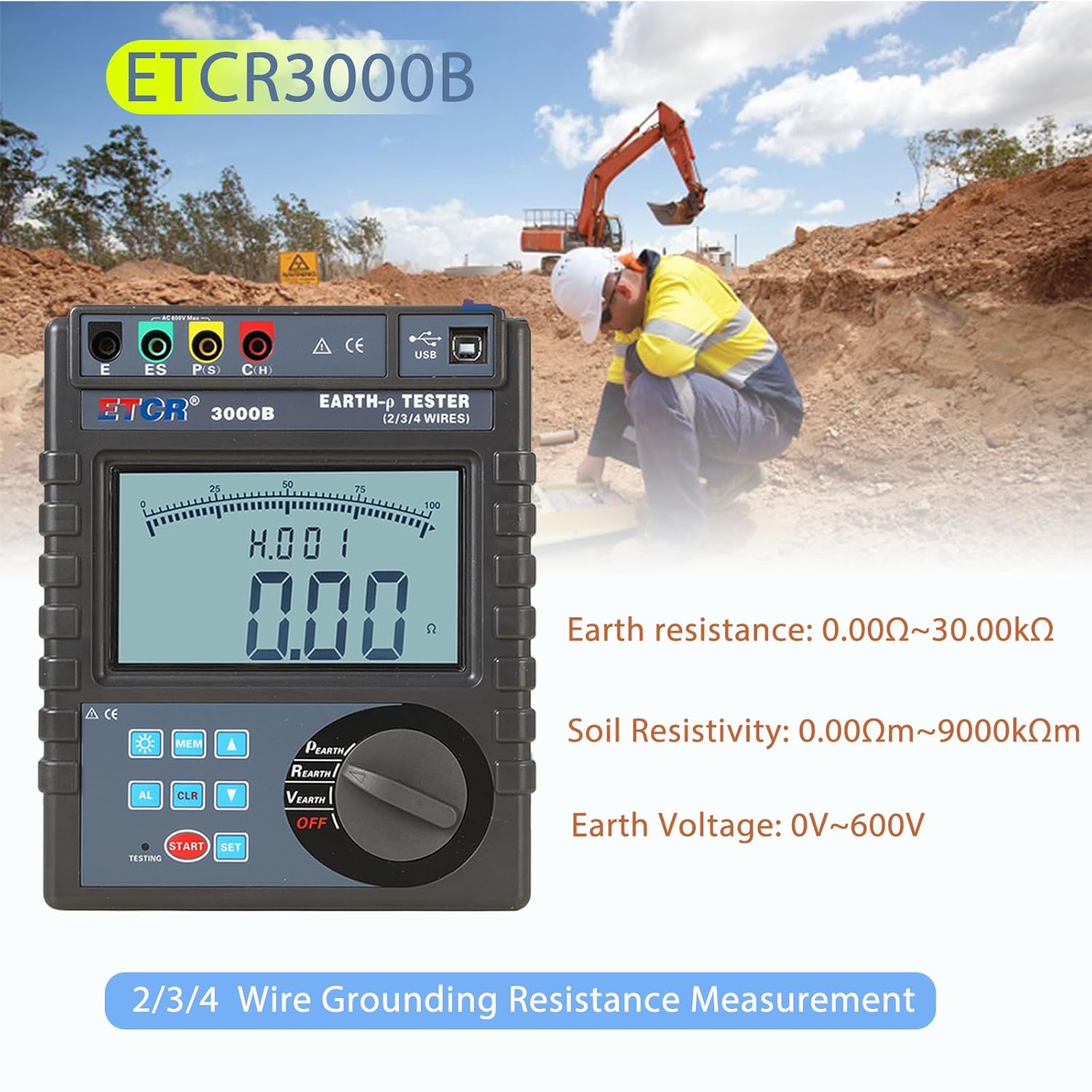

Measurement Range	Earth Resistance: 0.00Ω-30.00kΩ
Measurement Range	Soil Resistivity: 0.00Ωm-9000kΩm
Measuring Mode	Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement
Measuring Method	Earth Resistance: rated current change-pole method, measurement current 20mA Max Soil Resistivity: 4-pole measurement (Wenner method) Earth Voltage: average rectification(between P(S)-ES)
Test Frequency	128Hz/111Hz/105Hz/94Hz(AFC)
Short-circuit Test Current	AC 20mA max
Open-circuit Test Current	AC 40V max
Test Voltage Wave	Sine wave
Electrode DistanceRange	Can be set 1m-100m
Shift	Earth Resistance: 0.00Ω-30.00kΩ, automatic shift
Shift	Soil Resistivity: 0.00Ωm-9000kΩm, automatic shift
Backlight	Blue screen backlight, suitable for dim places
Display Mode	4-digital super-large LCD display, blue screen backlight
Measuring Indicator	During measurement, LED flash indicator, LCD count down display, progress bar indicator
LCD Frame Dimension	128mm×75mm
LCD Window Dimension	124mm×67mm
Dimension	L×W×H: 215mm×190mm×95mm

ETCR3000B 4-Terminal Earth Resistance And Soil Resistivity Tester
